VX222 v2
User’s Manual
21
Faders
Various faders allow you to adjusting input, output and hardware monitoring
levels. The faders can be reset by double clicking on their respective buttons.
Speakers (Output)
Applies an analog gain on the selected output device.
Wave out (Output)
Applies a digital gain on all files played as well as on software monitoring.
Monitoring
Applies a digital gain on the hardware monitoring.
Analog In
As the VX222v2 does not dispose of an adjustable analog input gain, this
cursor applies the digital input gain.
Digital In (Input)
Applies a digital gain to the digital signal coming from the digital input.

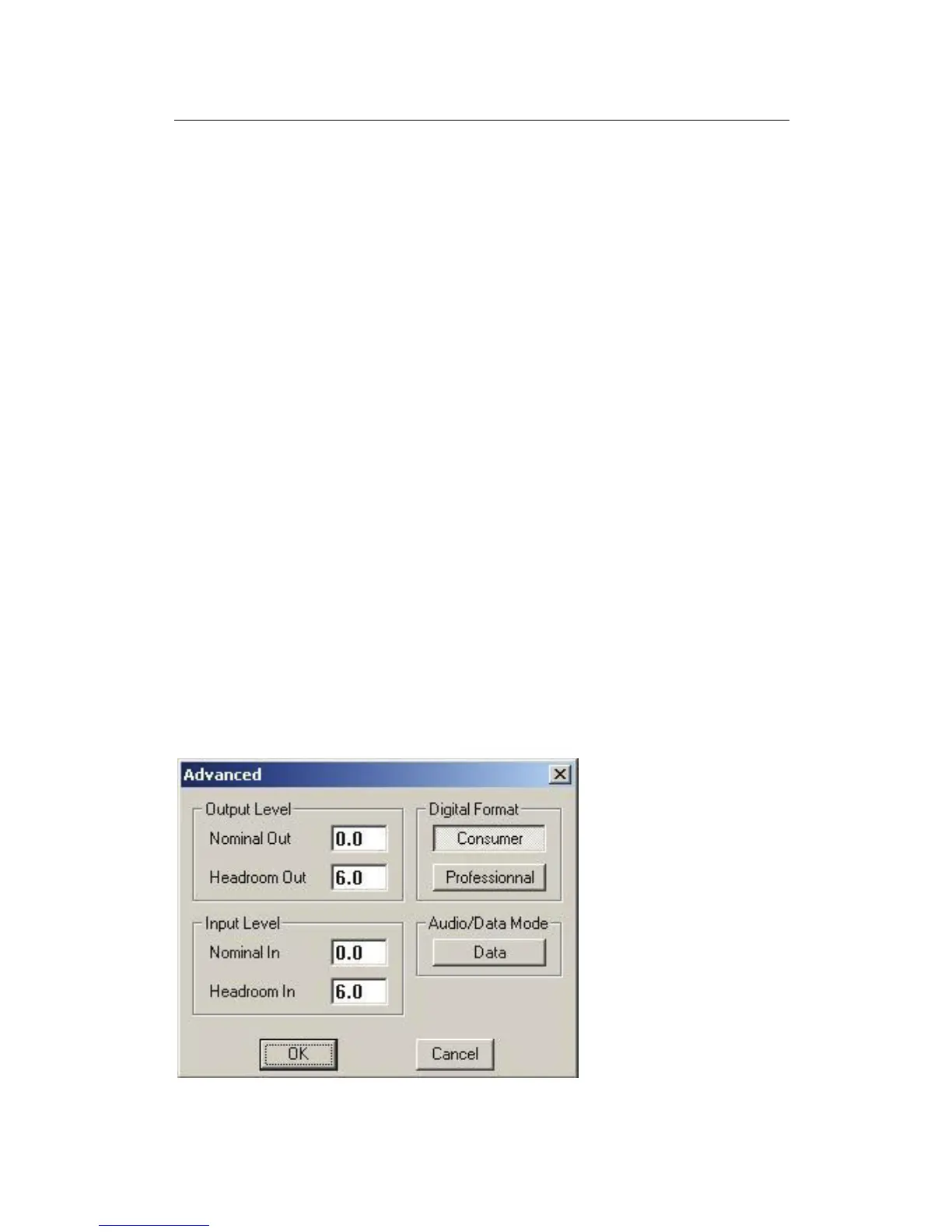

Advanced settings
