ANALOG CABLE DIAGRAM

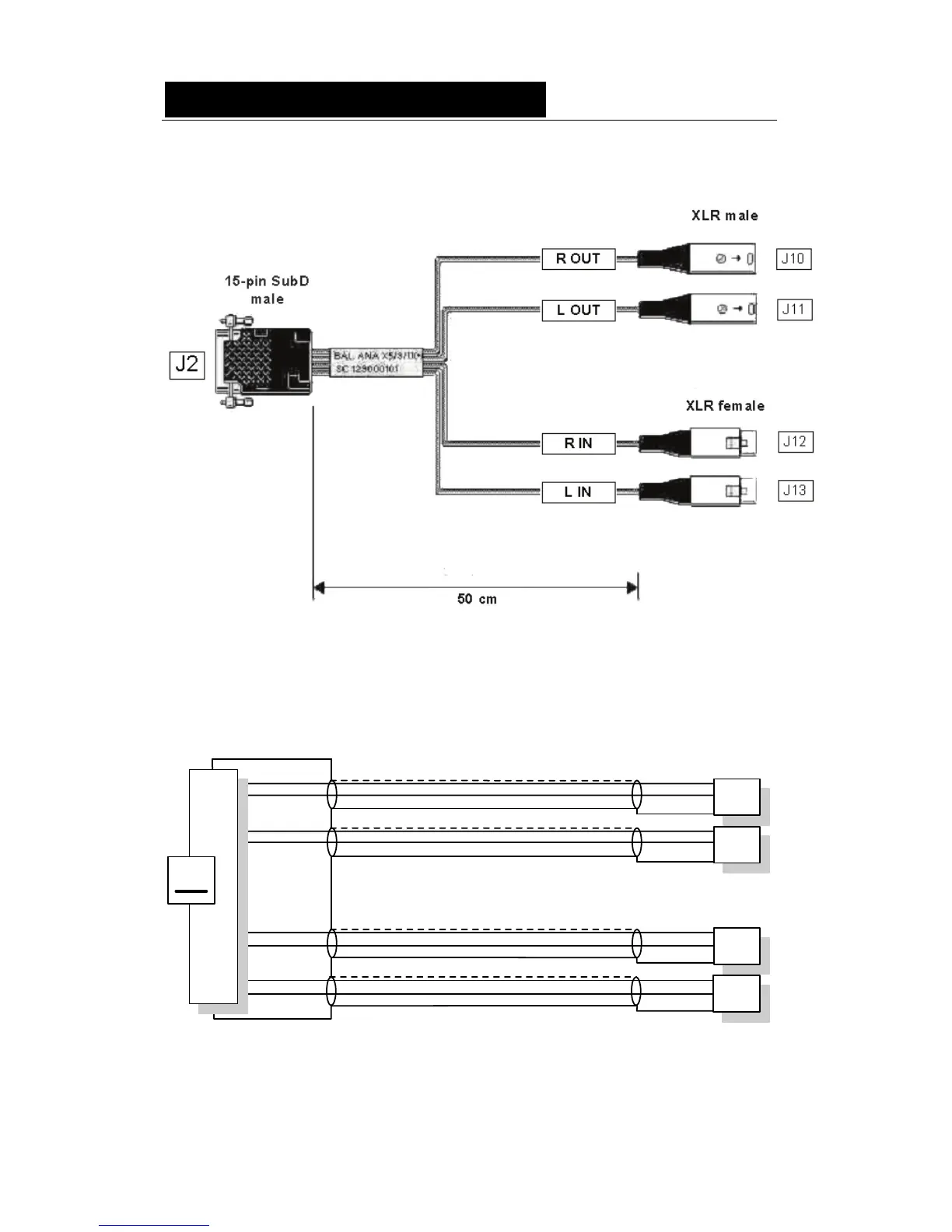

WIRING DIAGRAM – Analog Cable
J13
female
+
-
3
2
1
Left IN
J12
female
+
-
3
2
1
Right IN
J11
male
+
-
3
2
1
Left OUT
J10
male
+
-
3
2
1
Right OUT
XLR
1
9
10
3
13
6
7
15
J2
Signal number
