Connecting and Removing Cables and Adapters 5-7
Connecting Cables
Cabling the Ethernet AUI Adapters
This section describes how to connect the 15-Pin AUI adapters.
Cabling the AUI Fiber Port Adapter
Figure 5-5 shows how to cable the 15-Pin AUI fiber port adapters.

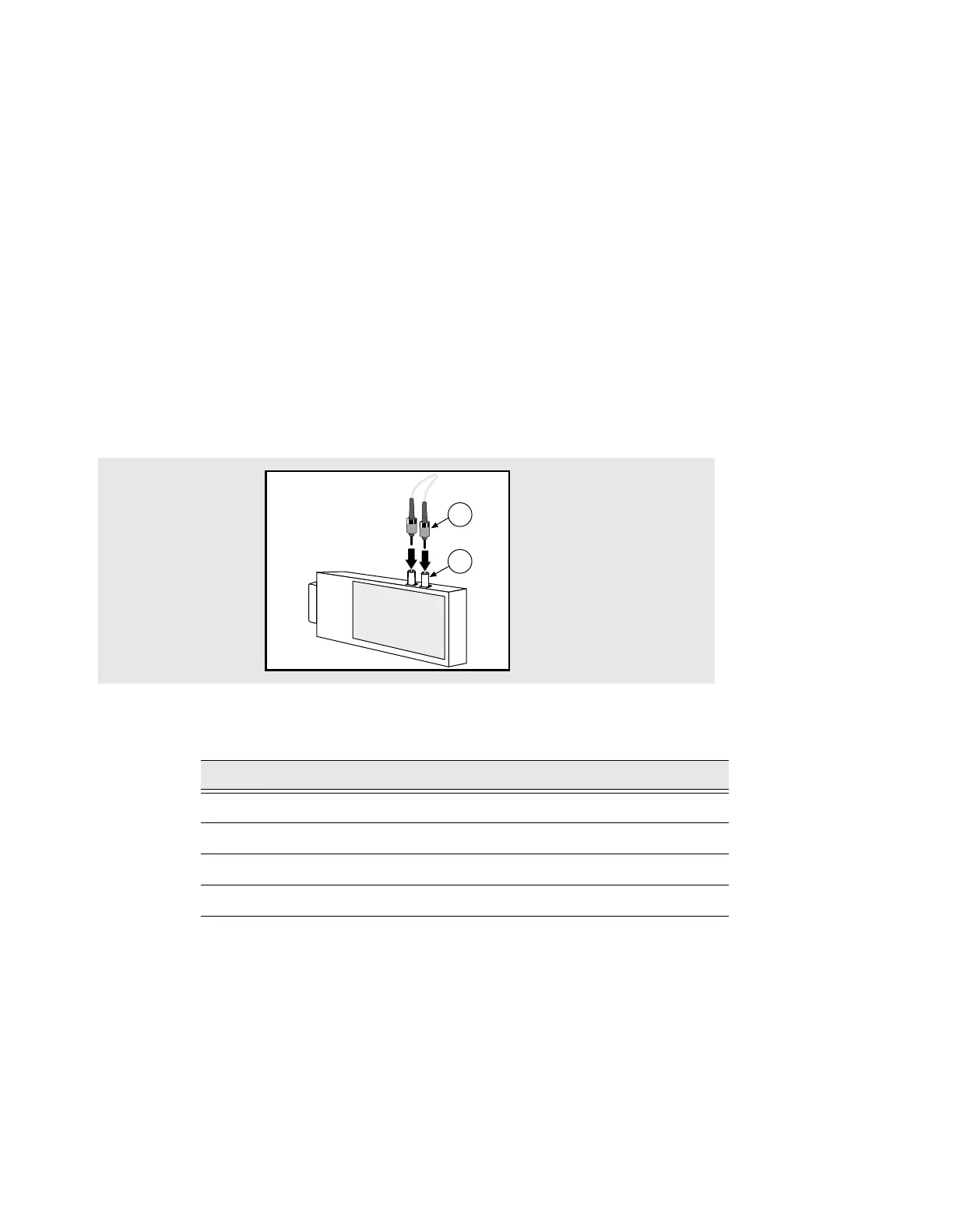

Figure 5-5: Cabling the AUI Fiber Port Adapter
To cable an adapter, complete the following steps:
Step Action
1 Align the fiber connectors (1) with the port on the AUI adapter.
2 Insert the fiber connectors (1) with the port on the AUI adapter (2).
3 Push in and turn the fiber connector (1) to the right to lock it in position.
4 Connect the other end of the cable to a repeater.
3505-28
2
1
