Seven-Segment Display Codes
A-12
Seven-Segment Display Codes

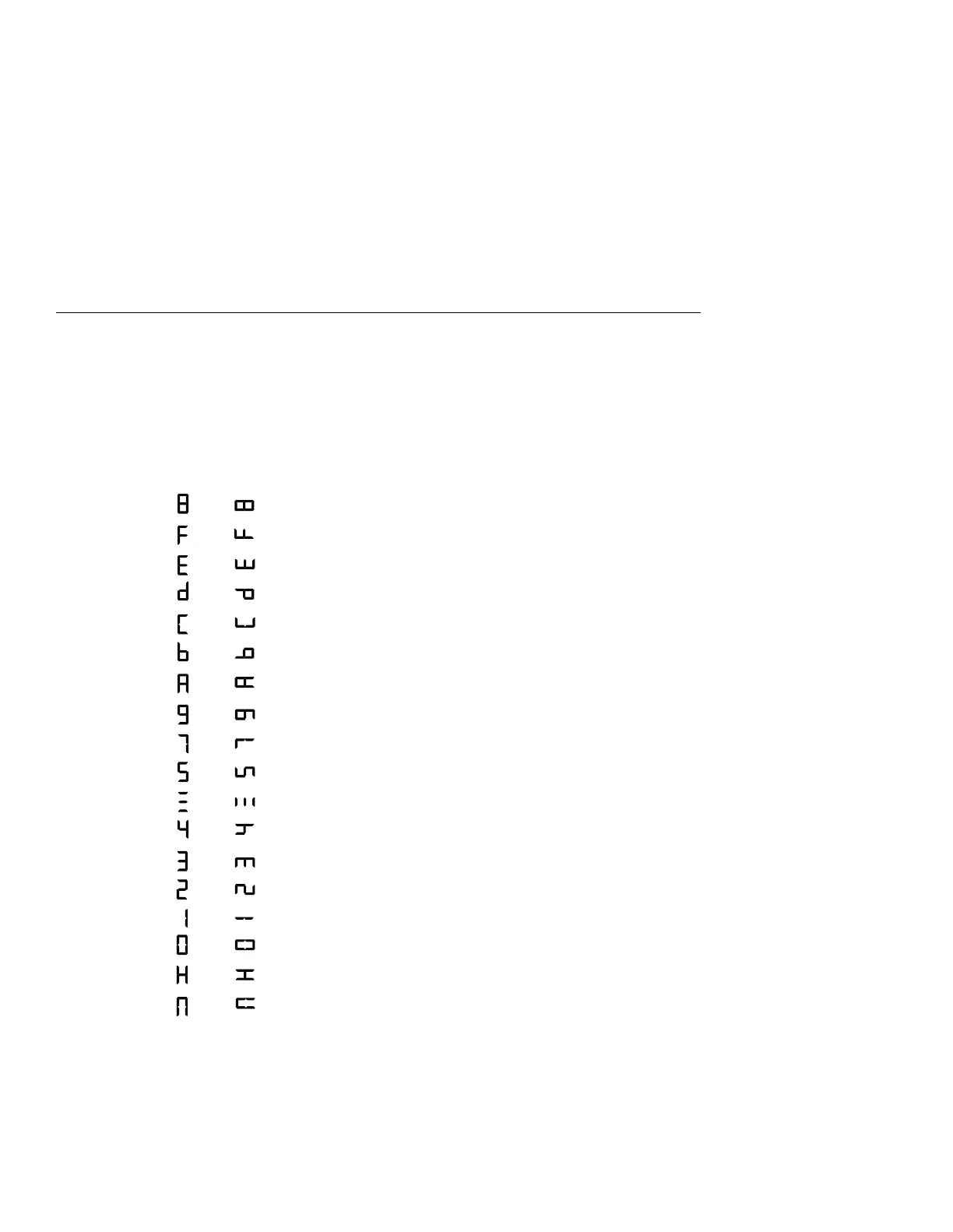

Table A-2 defines the seven-segmnet display codes (in approximate font type) and
describes the codes that will be displayed during the server internal self-test when the
DECserver goes through a power up and initialization.
Table A-2: Seven-Segment Display Codes
No power or display broken
Initial power on
Initialization
DECserver internal test
SIM 1 test
SIM 2 test
DECserver internal test
DECserver internal test
DECserver internal test
DECserver internal test
Network interface external test
Software loading from Flash RAM
Requesting load
Load request backoff
Loading
Requesting dump
Dumping
Hardware revision # incompatible with firmware revision #
No SIMs, or wrong type SIMs installed
DECserver is operating correctly. The rotating code is referred
to as the race track pattern.
Off
Rotating
Off
Rotating
3505_34
