Connector Pin Descriptions
B-4
10BASE-T Ethernet
The 10BASE-T Ethernet connector is an 8-Pin modular jack (MJ8). Figure B-2
shows how the pins are numbered on a 10BASE-T Ethernet connector and
Table
B-2
lists the signals for the 10BASE-T Ethernet connector.

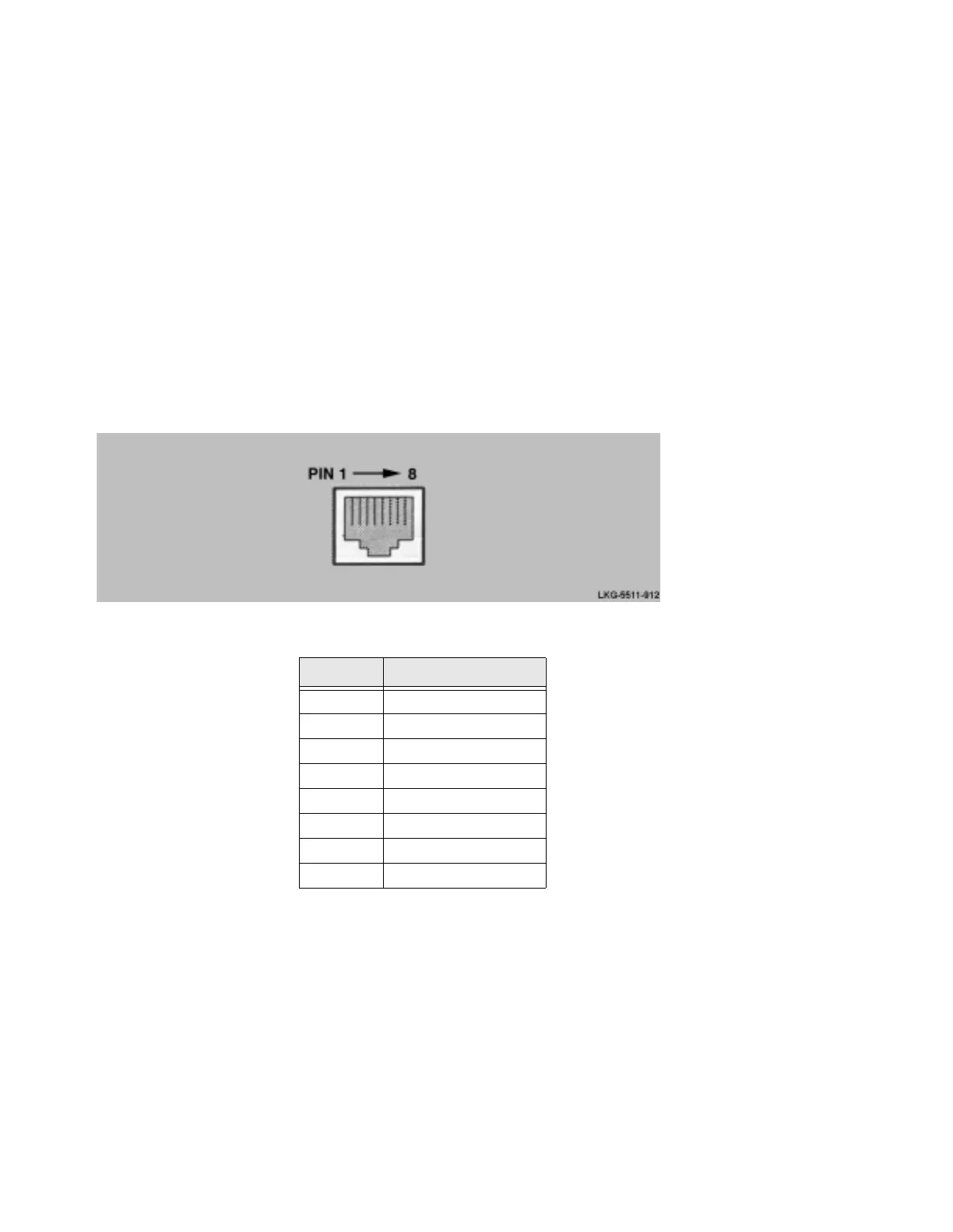

Figure B-2: Pin Numbers and Signals for 10BASE-T Ethernet Connector
Table B-2: Signal Names for 10BASE-T Ethernet Connector Pins
Pin No. Signal Name
1 Transmit +
2 Transmit –
3 Receive +
4 Reserved
5 Reserved
6 Receive –
7 Reserved
8 Reserved
