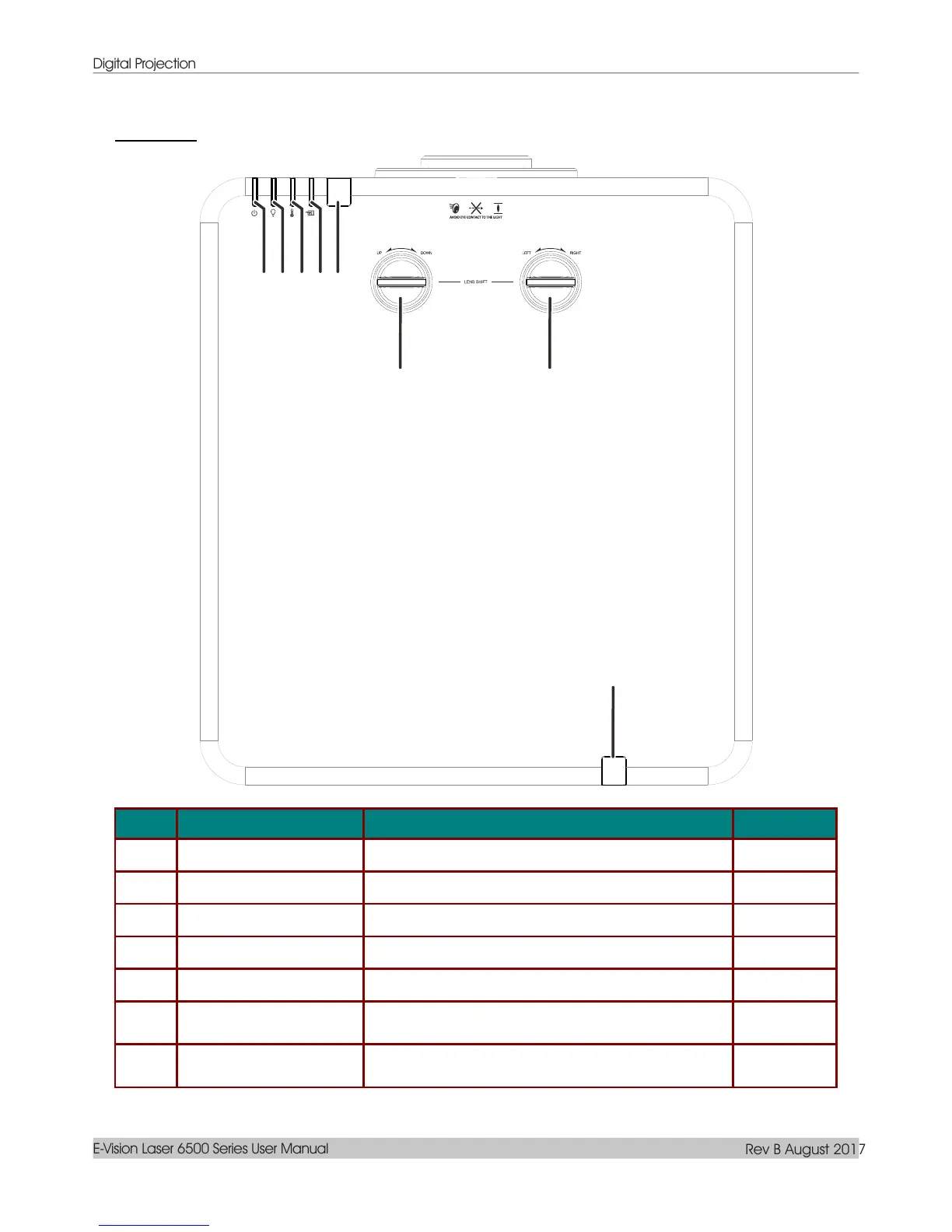

Top view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
Power LED Display the power on/off sequence status.
62
2.
Light source LED Display the light source status.
62
3.
Temp LED Display the thermal status.
62
4.
Filter LED Display the filter replacing warning message.
62
5.
IR Receiver Receives IR signal from remote control.
7
6.
Vertical Lens Shift
(UP / DOWN)
Adjusts the image position vertically.
20
7.
Horizontal Lens Shift
(LEFT / RIGHT)
Adjusts the image position horizontally.
21
1 2 3
4
5
6
7
5
