– v –

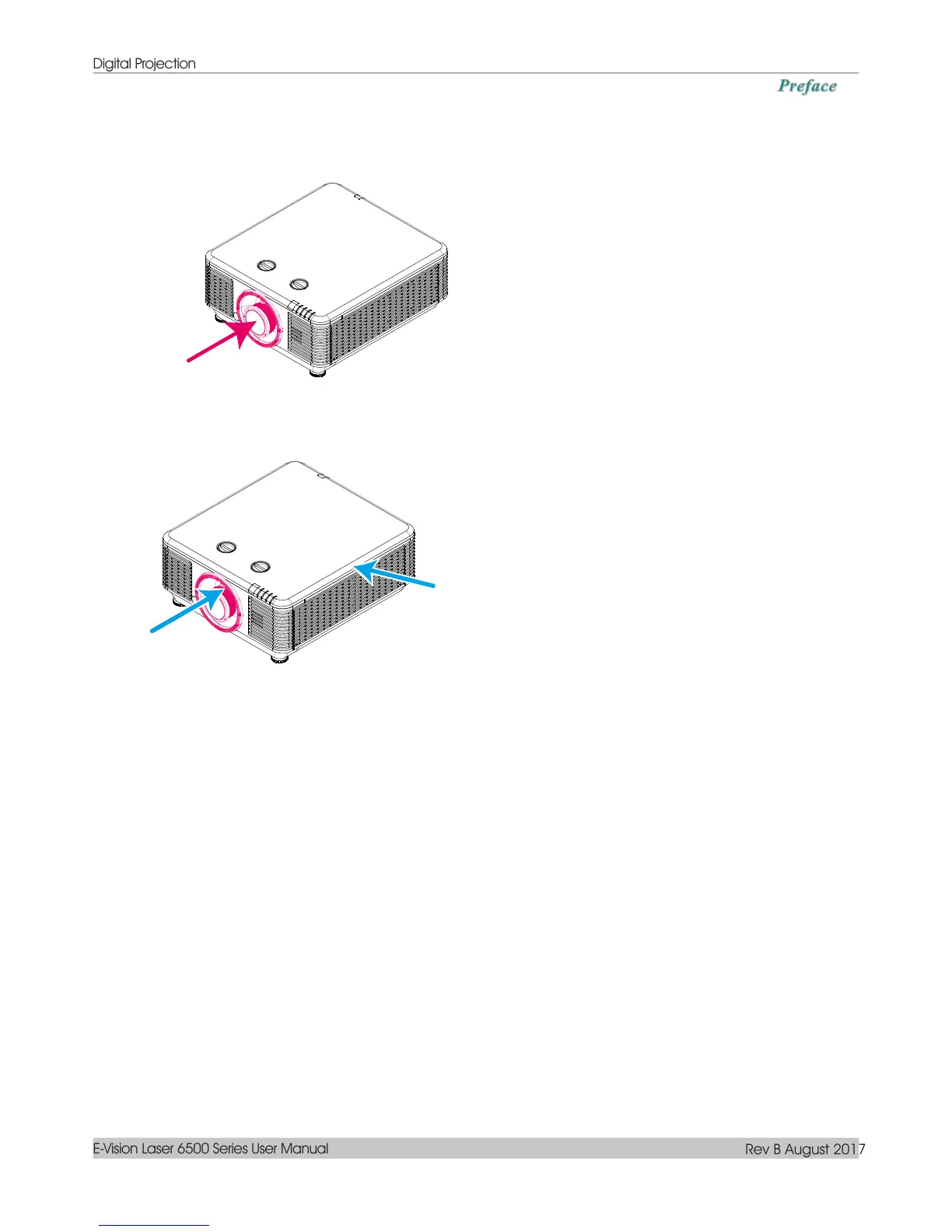

Location of laser aperture
Below drawing is the laser aperture location. Be careful not to let the eye see the light directly.
Interlock switches
This machine has 2 (Top cover x 1, Lens x 1) Interlock switches to protect the laser light Leakage.
1. Will power-off the system individually when the top cover is removed.
2. Will power-off the system individually when the lens is removed or not install correctly.
