Product Overview
Chapter 1

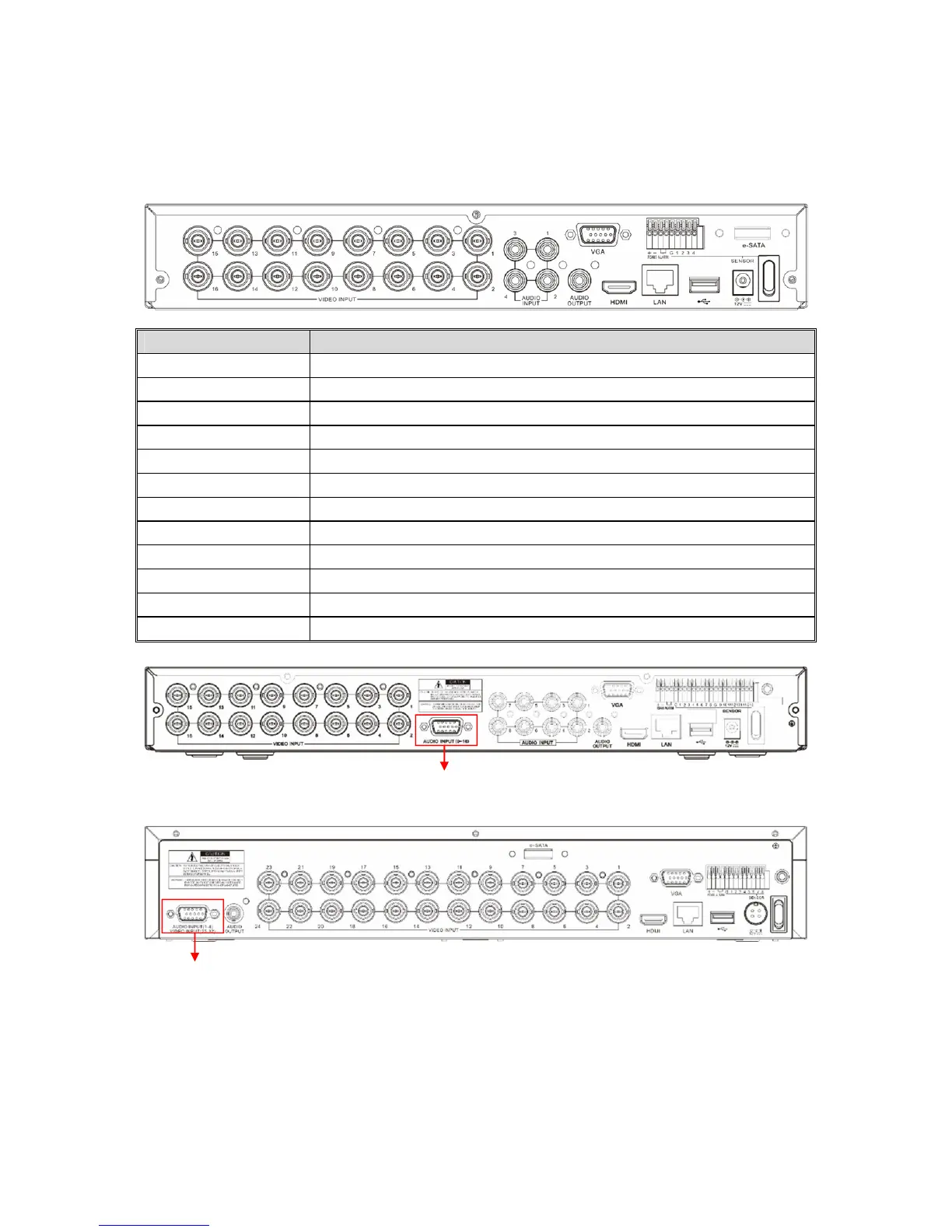

Rear Panel
1.1
Item Description
VIDEO INPUT Connect with video input devices, standard BNC port
AUDIO INPUT Connect with audio input signals, RCA port
AUDIO OUTPUT Audio signal output, RCA port
USB port Connect the supplied mouse or USB flash memory
VGA Connect to your TV or a monitor with VGA input.
HDMI Connect to your digital TV or monitor with HDMI input
LAN Connect to your home network
e-SATA Optional. Connect to e-SATA HDD for recording & backup
RS-485 Connect to PTZ devices
Sensor & Alarm Optional. Connect to external sensor & alarm devices
Power Connect to the supplied power adaptor
Power Switch Turn on/off power supply
AUDIO INPUT (9-16)
For some models to connect to audio inputs with supplied connector
AUDIO INPUT (1-4) & VIDEO INPUT (25-32)
For some 32CH DVR to connect to audio inputs & video inputs (25CH ~ 32CH) with supplied connector
