PTZ Setup & Control
5.8.3

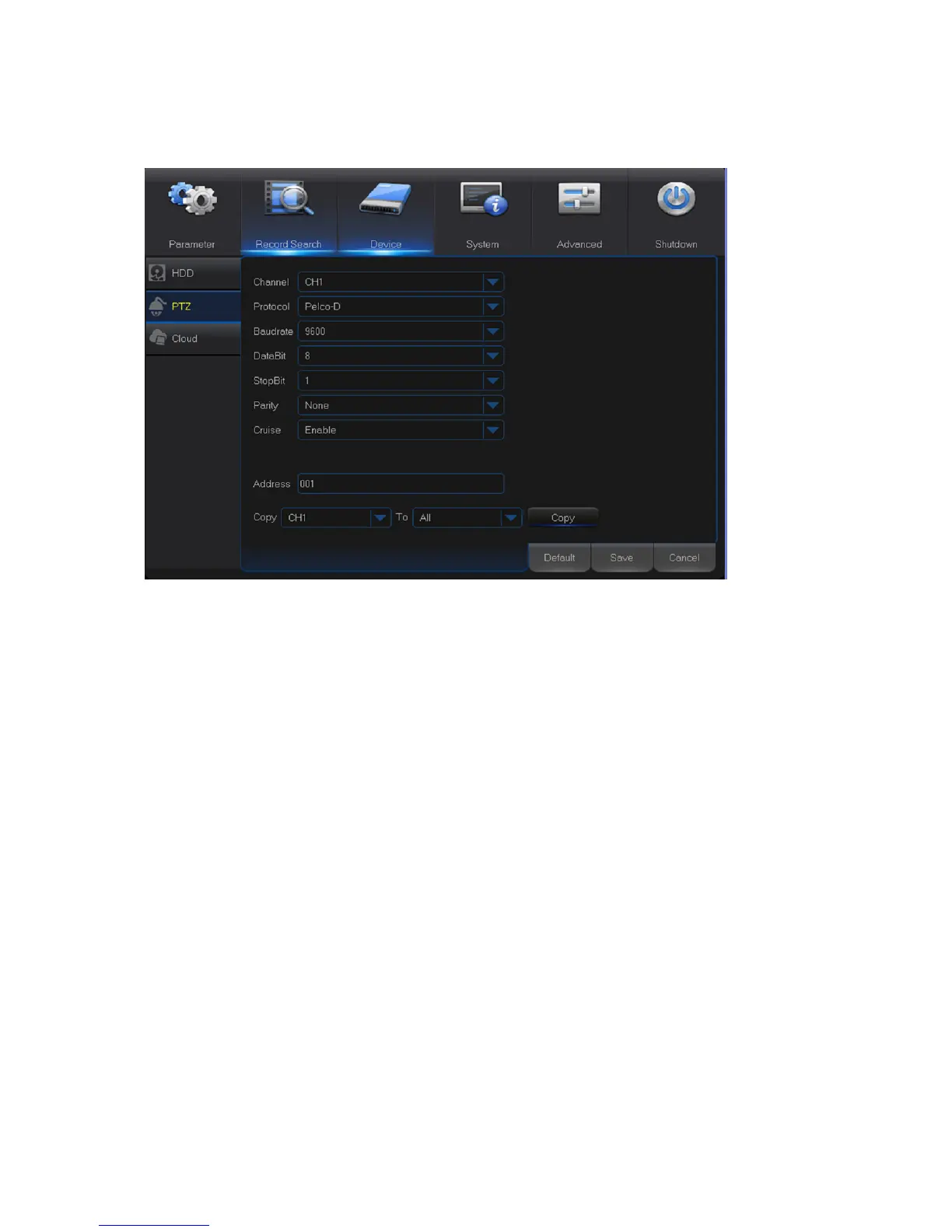

This menu allows you to configure the PTZ (Pan-Tilt-Zoom) settings for the dome camera.
Channel: Choose a channel where is connected a dome camera.
Protocol: Choose the communication protocol between the PTZ capable camera and DVR. If
your camera support UTC (Up the Coax) function, you can choose COAX1 or 2 to display your
camera OSD menu or control the UTC PTZ function.
Baudrate: The speed of the information sent from the DVR to the PTZ-capable camera. Make
sure it matches the compatibility level of your PTZ-capable camera.
DataBit/StopBit: The information between the DVR and PTZ-capable camera is sent in individual
packages. The DataBit indicates the number of bits sent, while the EndBit indicates the end of the
package and the beginning of the next (information) package. The available parameters for
DataBit are: 8, 7, 6, 5. the available parameters for the StopBit are 1 or 2.
Parity: For error check. See the documentation of your PTZ-capable camera, to configure this
setting.
Cruise: Enable to allow to use the Cruise mode. In order to use the Cruise mode, you need to set
a number of preset points.
Address: Set the command address of the PTZ system. Please be noted that each PTZ-capable
camera needs a unique address to function properly
