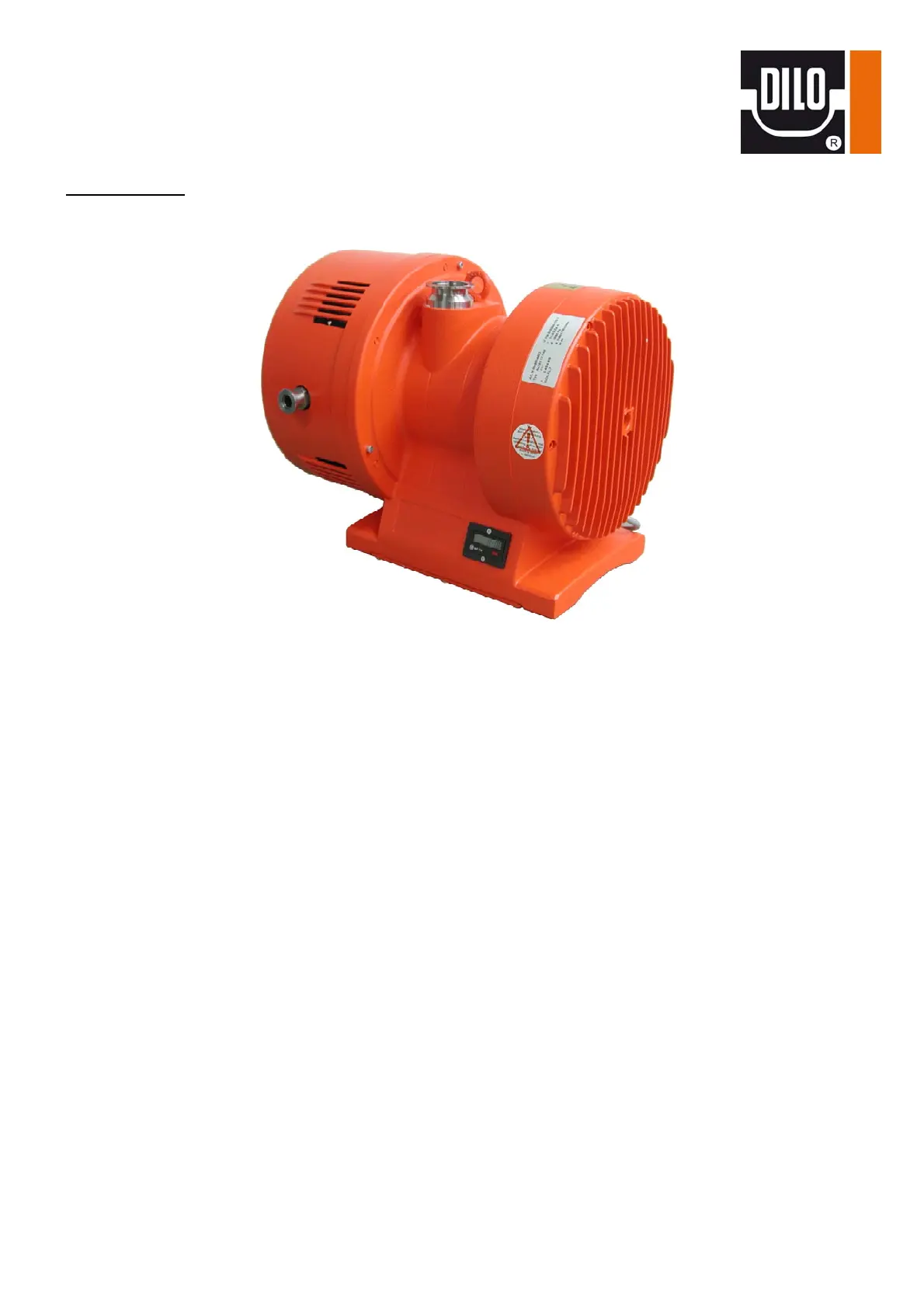

Suction pump | DSP 015
www.dilo-gmbh.com | C 3232-01 | Page 1 / 5
Technical data
Nominal suction capacity: 15 m³/h at 50Hz
18 m³/h at 60Hz
Final pressure: 0.01 mbar
Nominal motor rating: 0.45 kW
Nominal motor speed: 1500/min at 50Hz
1800/min at 60Hz
Motor tension:
3-phase current – voltage range: 190-240/380-415 V ± 10% 50/60 Hz
Alternating current – voltage range: 200-240 V ± 10% at 50/60 Hz
100-115 V ± 10% at 50/60 Hz
Weight: 48 kg
