Installation
Mounting Holes
Main Control Board
Flame Panel
6. Drive four supplied mounting screws through the four mounting holes located on the inside surface of the
replace chassis, into wall studs. (Figure 5)
7. Complete the wiring according to instructions in the Electrical Installation section (pages 12–13).
8. Complete the installation using the instructions in the following sections: Mirrored Glass Installation (page15),
Arranging Media (page15), Front Glass Installation (page16).

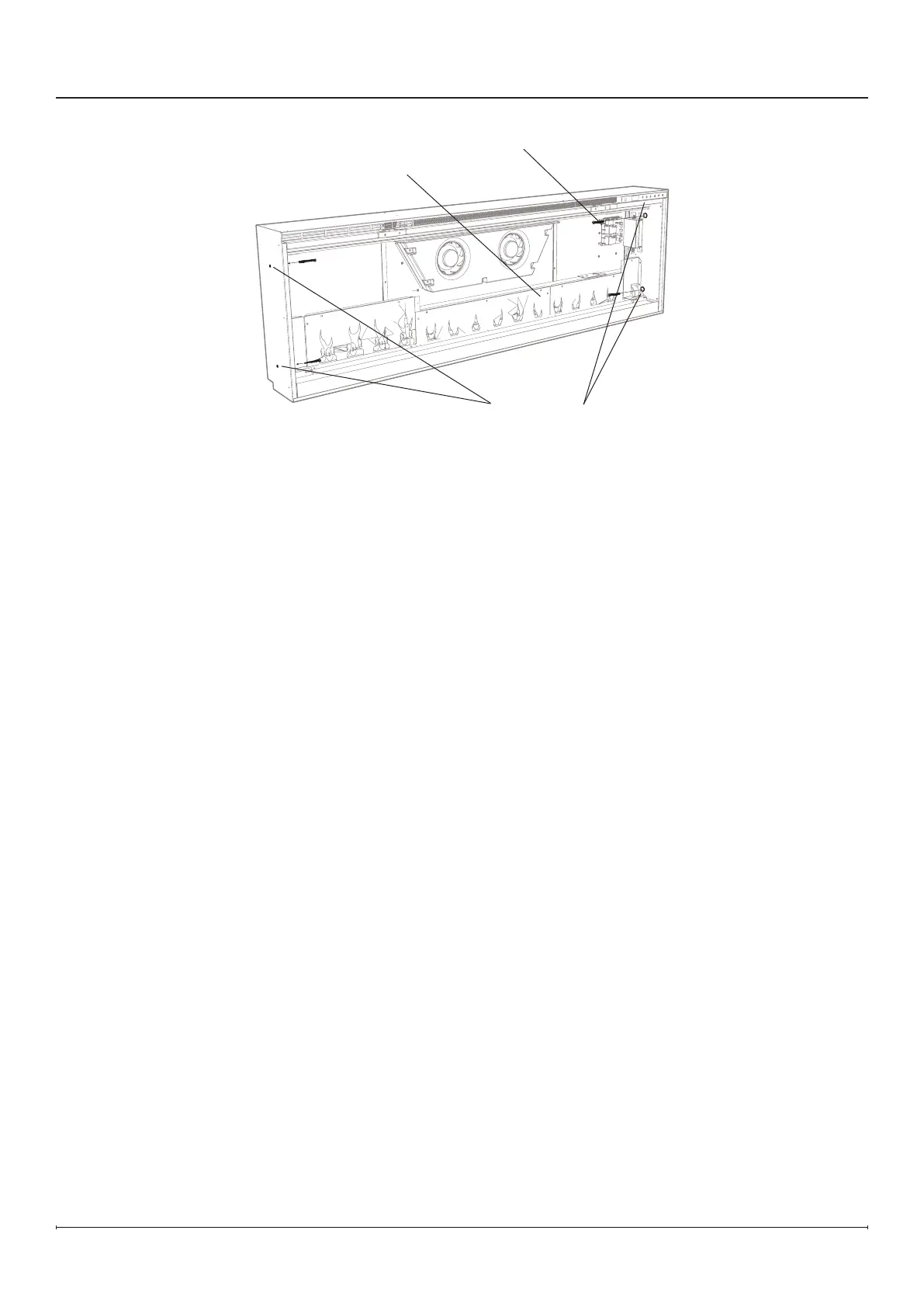

Figure5

Dimplex XLF50 Specifications

General

Type	Electric Fireplace
Width	50 inches
Voltage	120 V
Wattage	1500 W
Remote Control	Yes
Thermostat	Yes
Installation	Wall-mounted
Dimensions	50 x 20 x 6 inches
