Dimplex XLF50 Installation And User Guide

6 www.dimplex.com
UL Listing
File Number: E71416
Model Reference
XLF50 690963XXXX
XLF60 691000XXXX
XLF74 690969XXXX
XLF100 690970XXXX
*XXXX indicates a non-safety critical suffix.
Electrical Rating
Voltage: 120 V (3-Wire) or 240 V (4-Wire)
Power: 1500W at 120V, 2500W at 240V

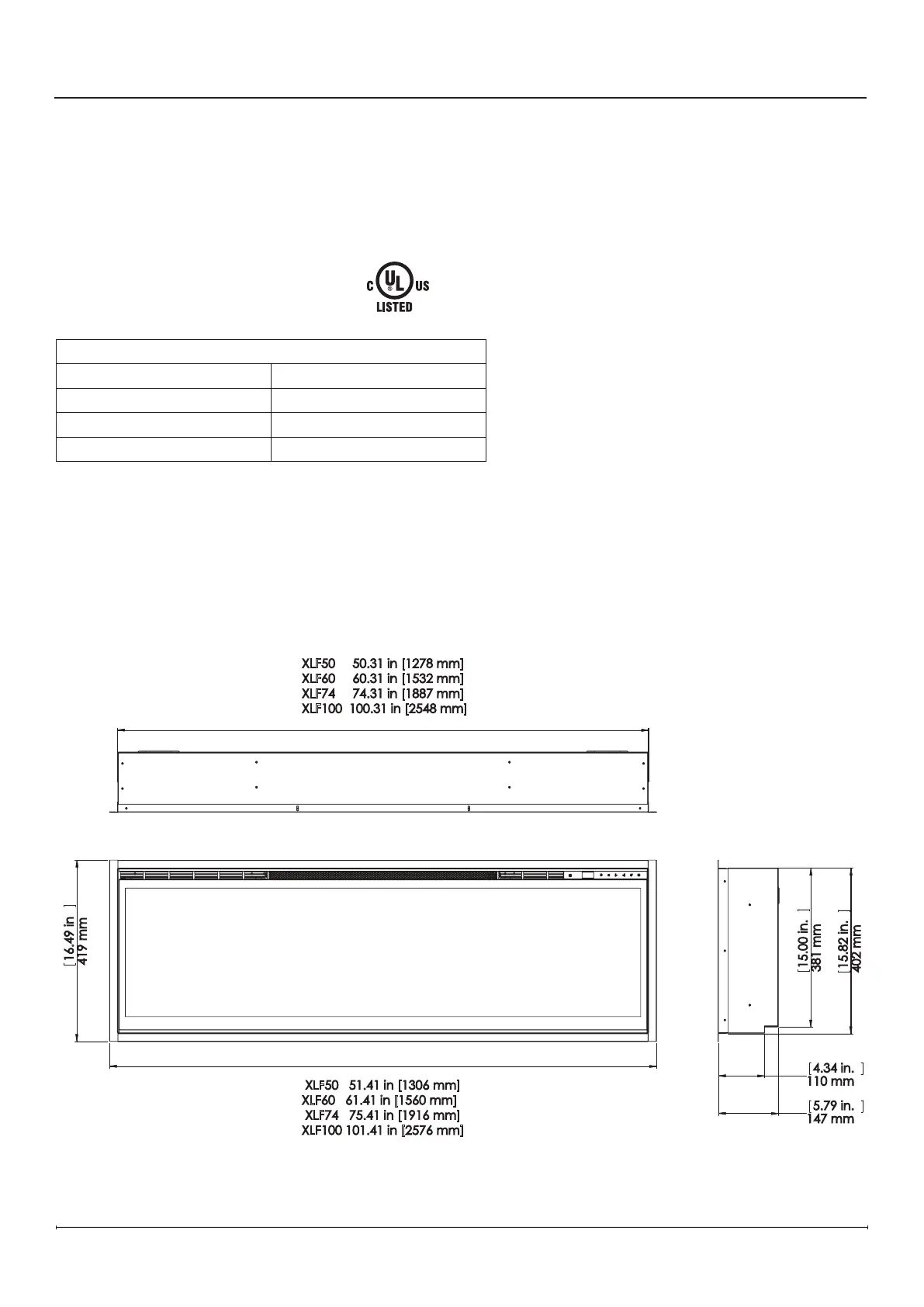

Product Dimensions
Technical Specifications
Figure 1
16.49 in
419 mm
15.82 in.
402 mm
15.00 in.
381 mm
5.79 in.
147 mm
4.34 in.
110 mm
XLF50 50.31 in [1278 mm]
XLF60 60.31 in [1532 mm]
XLF74 74.31 in [1887 mm]
XLF100 100.31 in [2548 mm]
XLF50 51.41 in [1306 mm]
XLF60 61.41 in [1560 mm]
XLF74 75.41 in [1916 mm]
XLF100 101.41 in [2576 mm]
Figure1

Dimplex XLF50 Specifications

General

Type	Electric Fireplace
Width	50 inches
Voltage	120 V
Wattage	1500 W
Remote Control	Yes
Thermostat	Yes
Installation	Wall-mounted
Dimensions	50 x 20 x 6 inches
