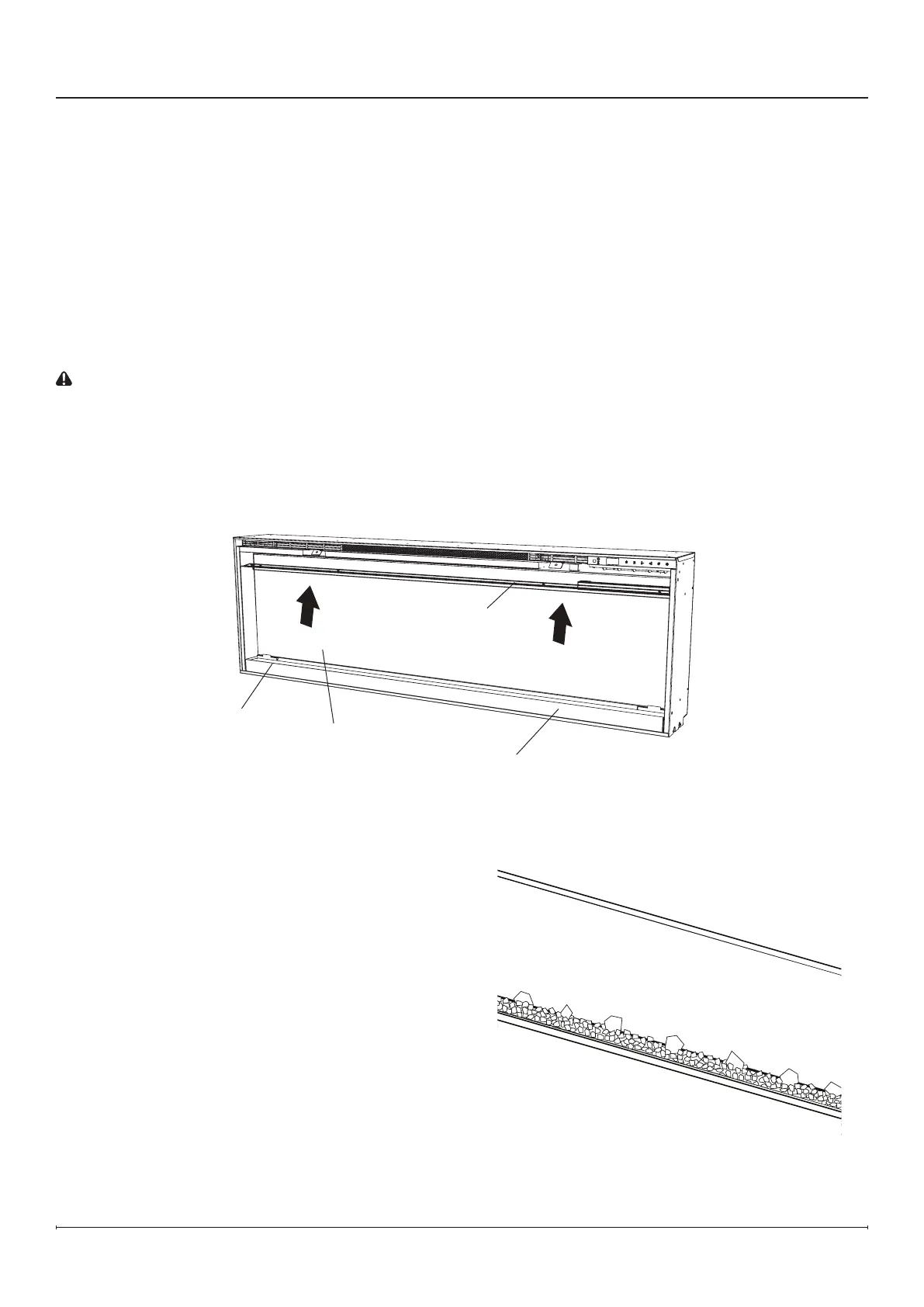

Figura 11
Figura 12
Instalación
Media Arrangement
For best results when using the supplied media, arrange
as follows:
1. Evenly space the large media in the media tray along
the back of the media tray
2. Pour and evenly distribute the smaller crystals into the
media tray.
3. If using the optional driftwood and river rock kit,
evenly disperse the river rocks and place the
driftwood pieces on top.
It is possible to use custom media ornaments to decorate
your rebox. The custom media must t easily without
scratching the glass or bowing the media bed, and must
not be composed of sand or liquid, which could interfere
with the safety of the rebox.
Mirrored Glass Installation
1. Localice y retire los tornillos, asegure el soporte del cristal reectante a la unidad, junto con la parte superior de
la abertura y coloque el soporte y los tornillos a un lado. (Figure11)
2. Quite la ventosa proporcionada desde la cavidad interior de la unidad (no se encuentra en las unidades XLF50).
3. Asegúrese de que la parte posterior del vidrio esté limpia y libre de partículas y huellas dactilares.
4. Secure the suction cup to the cristal reectante on the reective side
5. Lift the mirrored glass and place it into the supports on the bottom at either side of the unit.
6. Tilt the mirrored glass into a vertical position.
7. Secure the mirrored glass bracket to hold the glass in place, using the previously removed screws.
CAUTION: Ensure the mirrored glass does not fall forward while the mirrored glass mounting bracket is being
installed.
8. Remove the suction cup and clean any ngerprints or debris off the glass with a non-abrasive glass cleaner.
!
NOTE: Do not dispose of the suction cup! Keep it in a secure location, as it may be needed for maintenance and
service on this replace.
Cristal reejante
Soporte de vidrio
reectante
Bandeja para rocas de
acrílico transparente
Aberturas del
cristal
