Installation
Front Glass Installation
1. Ensure that the mirrored glass and the inside of the front glass is clean and free from particles and ngerprints.
2. Secure the suction cup (if provided) to the outside of the front glass.
3. Lift the front glass and carefully place the front glass into the lip located at the bottom of the opening of the
rebox.
4. Tilt the glass into a vertical position.
5. Secure the front glass using the provided screws and hex key. (Figure13)
CAUTION: Ensure the front glass does not fall forward while the securing screws are being installed.
6. Install the provided screw covers by placing the tabs of the screw cover between sides of the front glass bracket.
(Figure14)
!
NOTE: Do not dispose of the suction cup and hex key! Keep them in a secure location, as it may be needed for
maintenance and service on this replace.

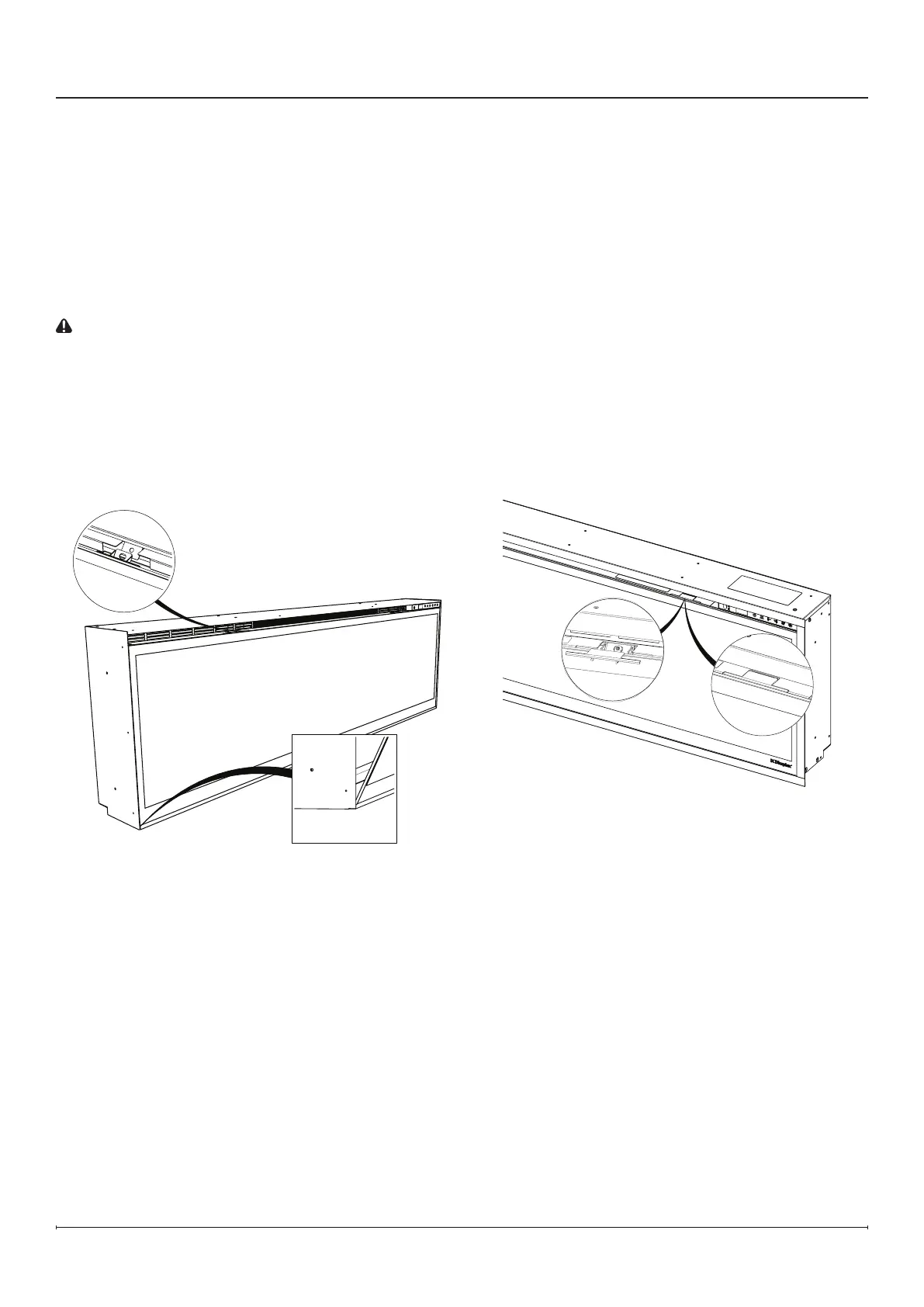

Figure 13
Figure 14
