22 www.dimplex.com

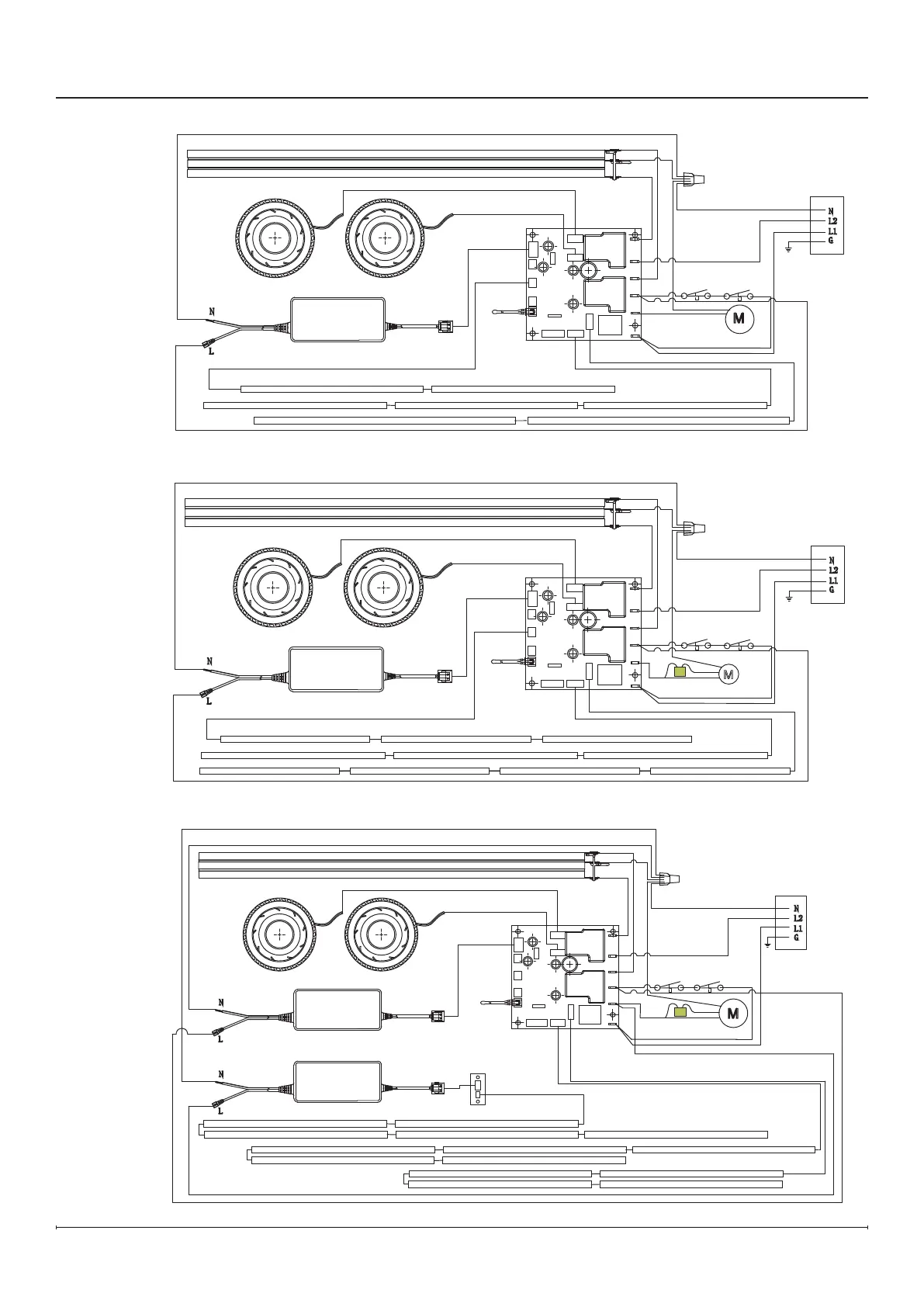

Schémas de câblage
XLF50
XLF60
CUTOUTS
THERMAL
M
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN
FAN
CERAMIC ELEMENT
MAIN CONTROL
BOARD
THERMISTOR
XLF50
CUTOUTS
THERMAL
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN
FAN
CERAMIC ELEMENT
MAIN CONTROL
BOARD
THERMISTOR
XLF60
M
XLF74
XLF100
CUTOUTS
THERMAL
M
FLICKER MOTOR
FLAME LED ASSEMBLY
MEDIA LED ASSEMBLY
MEDIA LED ASSEMBLY
POWER ADAPTER
FAN
FAN
CERAMIC ELEMENT
POWER ADAPTER
RELAY BOARD
MAIN CONTROL
BOARD
THERMISTOR
XLF74, XLF100
