Dimplex XLF50 Service Manual

7

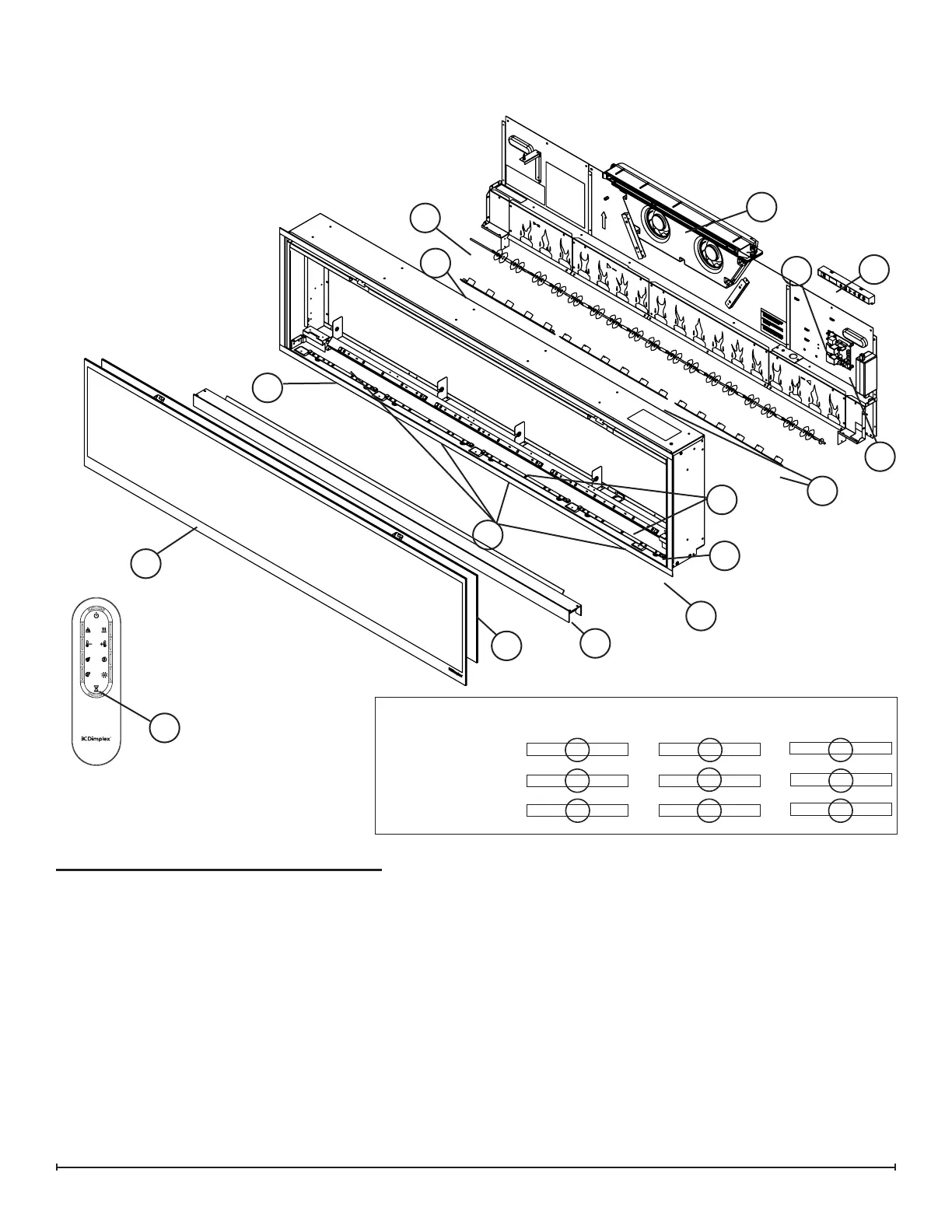

Exploded Parts Diagram - XLF60
1. Heater Assembly (with cutouts) .....2203720100RP
2. Remote Control ..................3001250100RP
3. Main Control Board ...............3001650200RP
4. Capacitive Controls and Display .....3001680200RP
5. Power Supply ...................2100250500RP
6. Thermistor ......................3001560600RP
7. Partially Reective Glass ..........5902890400RP
8. Front Glass .....................5902900200RP
9. Flicker Motor ....................2000480200RP
10. Flicker Assembly ................5902920400RP
11. 5-Light LED Flame Assembly .......3001760300RP
12. 6-Light LED Flame Assembly (2) ....3001760600RP
Replacement Parts List - XLF60
12
14
1
2
3
4
10
11
7
13
8
16
9
5
13. Media Tray .....................5902910400RP
14. 4-Light RGB LED Assembly ........3001960100RP
15. 5-Light RGB Media LED Assembly (4) 3001960200RP
16. 6-Light RGB Media LED Assembly (2) 3001960300RP
17. Mounting Hardware Kit ............9600350100RP
18. Large Acrylic Media ...............1400130300RP
19. Medium Acrylic Media (2) ..........1400150100RP
20. 4-piece Trim ....................9602160200RP
21. Front Glass Screws ...............8099770100RP
22. Screw Covers ...................0442370100RP
23. Power Cord .....................4100360100RP
20
15
12
12
16
15
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
11
15 15
16
14

Dimplex XLF50 Specifications

General

Type	Electric Fireplace
Width	50 inches
Voltage	120 V
Wattage	1500 W
Remote Control	Yes
Thermostat	Yes
Installation	Wall-mounted
Dimensions	50 x 20 x 6 inches
