Dimplex XLF50 Service Manual

9

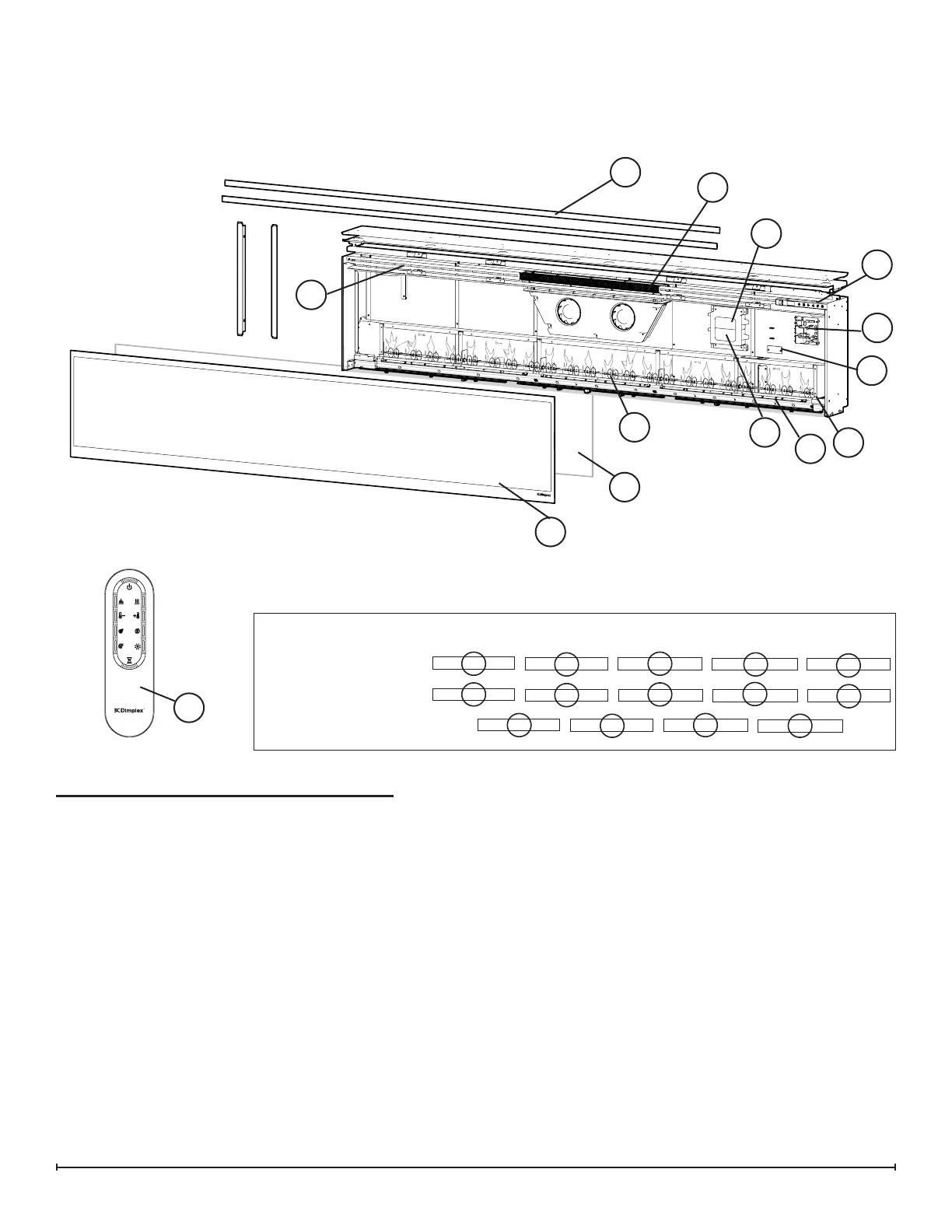

Exploded Parts Diagram - XLF100
Replacement Parts List - XLF100
1. Heater Assembly (with cutouts) ......2203720100RP
2. Remote Control ..................3001250100RP
3. Main Control Board ...............3001650100RP
MOD A & above ....3001650200RP
4. Capacitive Controls and Display .....3001680100RP
MOD A & above ....3001680200RP
5. Power Supply a) 5 Amp ..........2100250500RP
b) 3 Amp ..........2100250600RP
6. Thermistor ...................... 3001560700RP
7. Partially Reective Glass ...........5902890300RP
8. Front Glass .....................5902940200RP
9. Flicker Motor ....................2000480200RP
10. Flicker Assembly .................5902920300RP
11. 6-Light LED Flame Assembly (5) .....3001670100RP
MOD B ............3001760600RP
12. Media Tray ......................5902910300RP
13. 6-Light RGB Media LED Assembly (5) ... 3001570100RP
MOD B .............3001960300RP
14. 8-Light RGB Media LED Assembly (4) ... 3001570300RP
MOD B .............3001960400RP
15. Mounting Hardware Kit .............9600350100RP
16. Large Acrylic Media ................1400130200RP
17. Medium Acrylic Media (2) ...........1400150100RP
18. LED Power Distributor ............ 3001720100RP
19. 4-piece Trim .....................9602160400RP
20. Suction cups .....................9600820200RP
21. Front Glass Screws ...............8099770100RP
22. Screw Covers (MOD B) ...........0442370100RP
23. Power Cord (MOD B) .............4100360100RP
11
6
1
2
3
4
18
10
11
7
12
8
13
13
5a
9
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
11
14
14
13
5b
11
13
14
11
13
14
19

Dimplex XLF50 Specifications

General

Type	Electric Fireplace
Width	50 inches
Voltage	120 V
Wattage	1500 W
Remote Control	Yes
Thermostat	Yes
Installation	Wall-mounted
Dimensions	50 x 20 x 6 inches
