Dimplex XLF50 Service Manual

8 www.dimplex.com

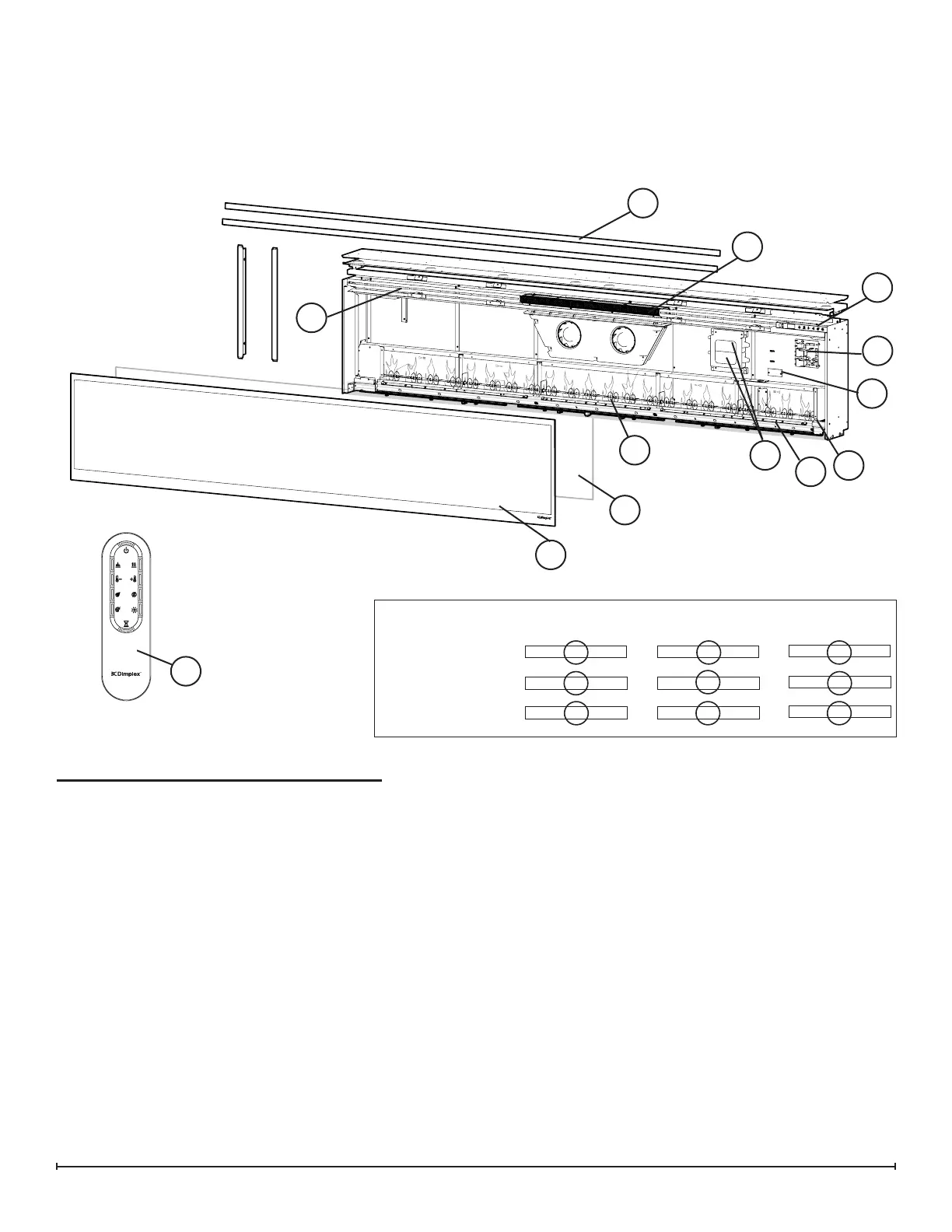

Exploded Parts Diagram - XLF74
Replacement Parts List - XLF74
12
6
1
2
3
4
19
10
11
7
13
8
14
1. Heater Assembly (with cutouts) ......2203720100RP
2. Remote Control ...................3001250100RP
3. Main Control Board ................3001650100RP
MOD A & above .....3001650200RP
4. Capacitive Controls and Display ......3001680100RP
MOD A & above .....3001680200RP
5. Power Supply (2) .................2100250600RP
6. Thermistor .......................3001560700RP
7. Partially Reective Glass ...........5902890200RP
8. Front Glass ......................5902940100RP
9. Flicker Motor .....................2000480200RP
10. Flicker Assembly .................5902920200RP
11. 6-Light LED Flame Assembly ........3001670100RP
MOD B ............3001760600RP
12. 8-Light LED Flame Assembly (2) .....3001670200RP
MOD B ............3001760700RP
13. Media Tray ......................5902910200RP
14. 6-Light RGB Media LED Assembly .......3001570100RP
MOD B ............3001960300RP
15. 8-Light RGB Media LED Assembly (5) .3001570300RP
MOD B ............3001960400RP
16. Mounting Hardware Kit .............9600350100RP
17. Large Acrylic Media ................1400130300RP
18. Medium Acrylic Media (2) ...........1400150100RP
19. LED Power Distributor .............3001720100RP
20. 4-piece Trim .....................9602160300RP
21. Suction cups .....................9600820200RP
22. Front Glass Screws ...............8099770100RP
23. Screw Covers (MOD B) ...........0442370100RP
24. Power Cord (MOD B) .............4100360100RP
15
5
9
LED Conguration
Flame LED’s (white)
Flame Base (colour)
Media (colour)
12
15 15
15
15
20

Dimplex XLF50 Specifications

General

Type	Electric Fireplace
Width	50 inches
Voltage	120 V
Wattage	1500 W
Remote Control	Yes
Thermostat	Yes
Installation	Wall-mounted
Dimensions	50 x 20 x 6 inches
