ASSEMBLY / DISASSEMBLY PROCEDURE

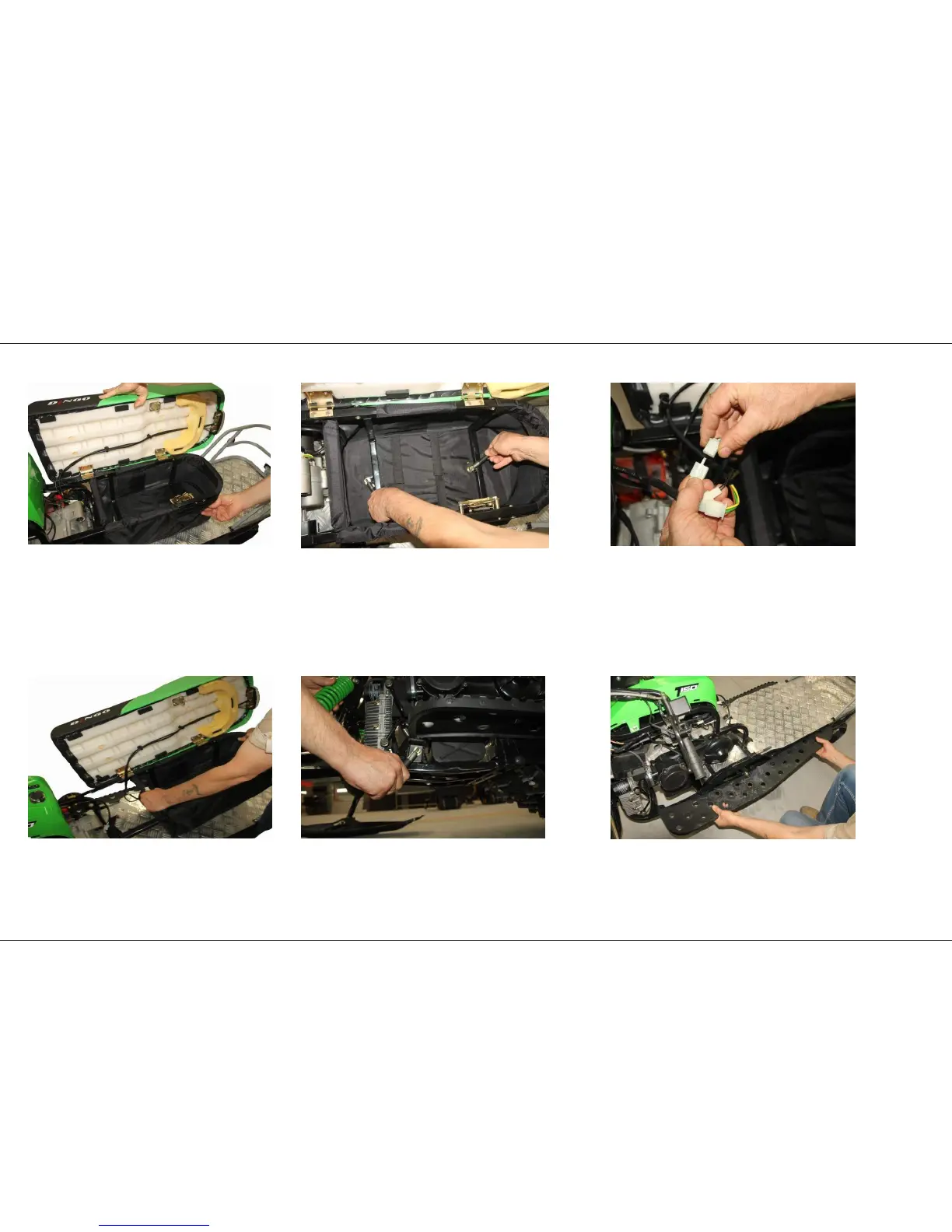

9. Open a seat. 10. Unscrew two screws of clamping of frame to a track block
frame.
12. Take off a seat with a frame. 13. Unscrew a footboard skid screw located in a
front part of the snowmobile (on a left and right
side of the snowmobile).
11. Detach head lights of a back light and a
temperature detector.
14. Take off a footboard (from a left and right
side of the snowmobile).
