Sensor installation
Mount the sensor before
splitting the pressure hose.

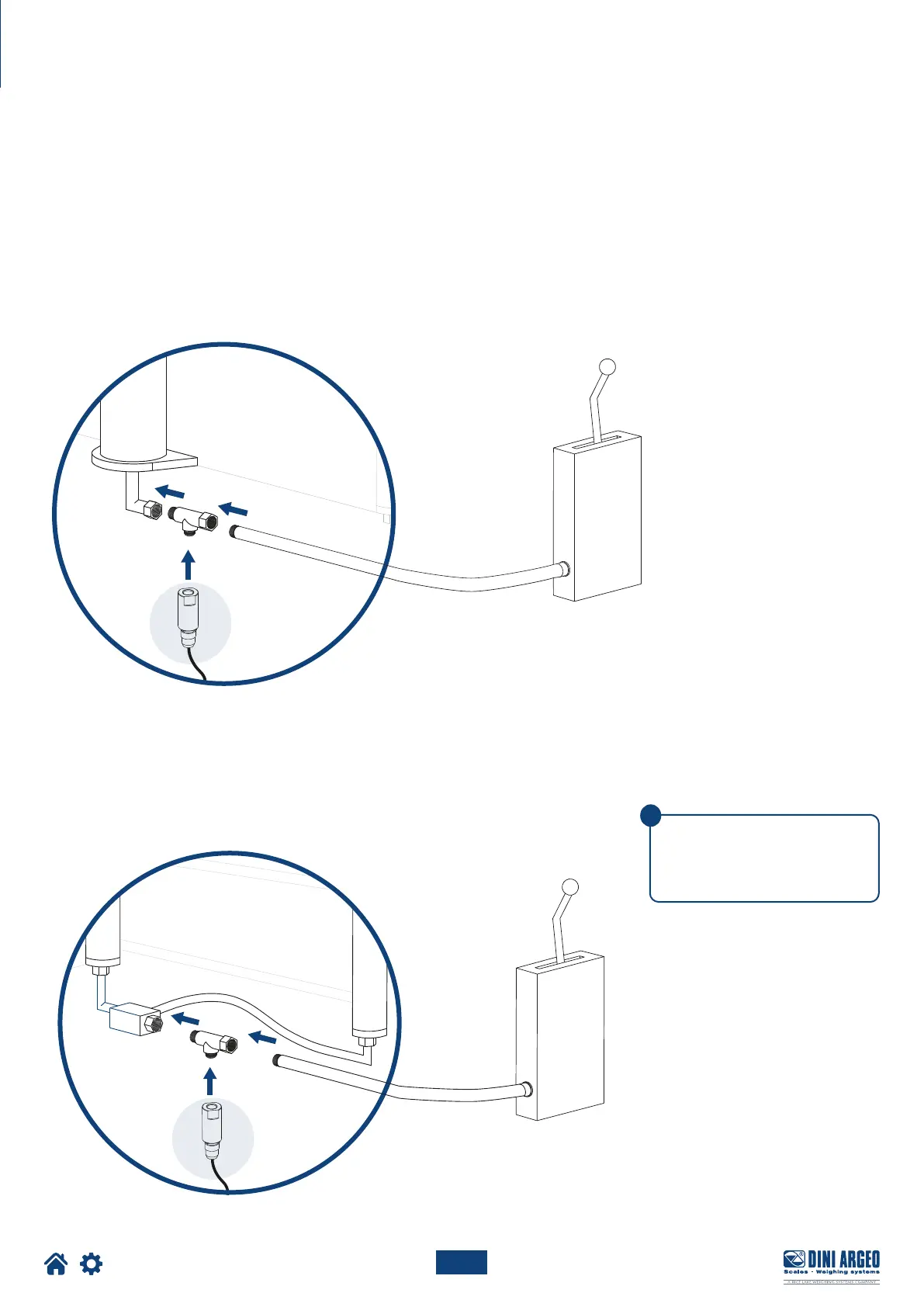

SENSOR MOUNTING ON DOUBLE-CYLINDER FORKLIFTS
The sensor is connected to the hydraulic system of the forklift using a compatible tee fitting (not included in the kit).
Install the sensor in the pressure pipe that guides the cylinder (the sensor should be positioned as close as possible to the cylinder).
The sensor must be installed with the cable pointing downwards. This prevents air from entering the sensor.
For intensive use of the forklift, it is advisable to use a tube of about 50 cm between the tee fitting and the sensor. By moving the sensor
away from the heat source, accuracy will not be adversely aected by temperature (e.g. motor, batteries, etc.).
SENSOR MOUNTING ON SINGLE-CYLINDER FORKLIFTS
