Calibration linearisation
Perform the linearisation after calibration to increase weighing accuracy.
Linearising the calibration means adding calibration points (up to 6). The more calibration points that are added, the more accurate the
system will be.
We recommend defining at least 2 linearisation points.
Example:
On a system with a capacity of 2000 kg, assuming an initial calibration with 2000 kg, we recommend adding 3 calibration points at 500 kg,
1000 kg, 1500 kg.
An additional point will need to be added at approximately 250 kg if the system is found to be inaccurate below 500 kg after testing.

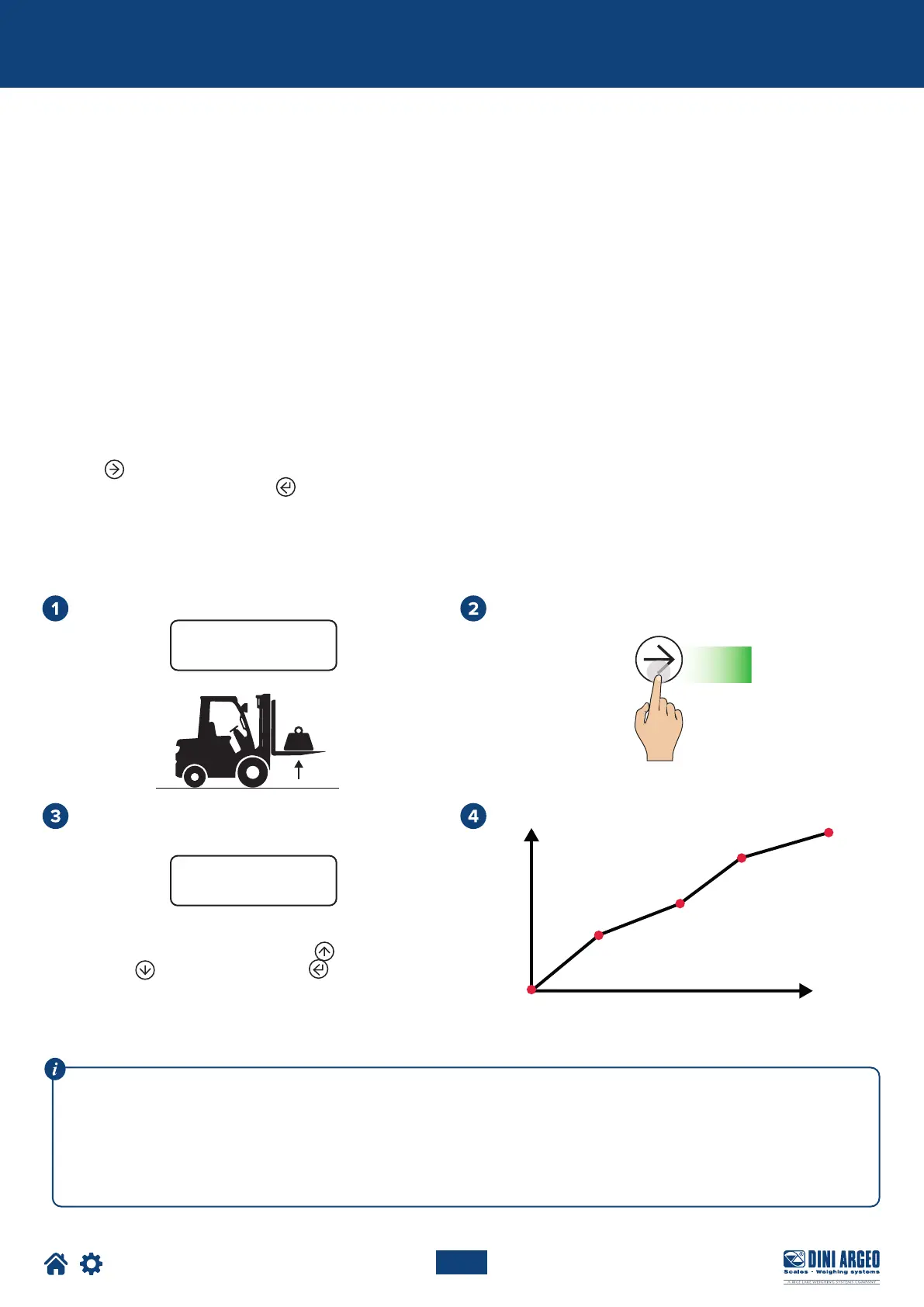

HOW TO ADD A CALIBRATION POINT:
1. Lift the weight value you want to acquire (e.g. 500 kg) with the indicator in the weighing state.
The indicator will show the weight and the “HOLD” warning light will appear.
2. Hold pressed for 5 seconds, The message “C.CoRR” will appear briefly on the display.
3. Enter the weight value and press .
4. Repeat the operation for each calibration point to be added.
Enter the value with the keys and
and confirm by pressing .
After 6 linearisation points are reached, adding a new one will overwrite the point with weight value immediately higher than the
acquired weight.
It is not possible to add a linearisation point with a weight value higher than the acquired point during the initial calibration (W.OVER error).
Press
for 5 s
