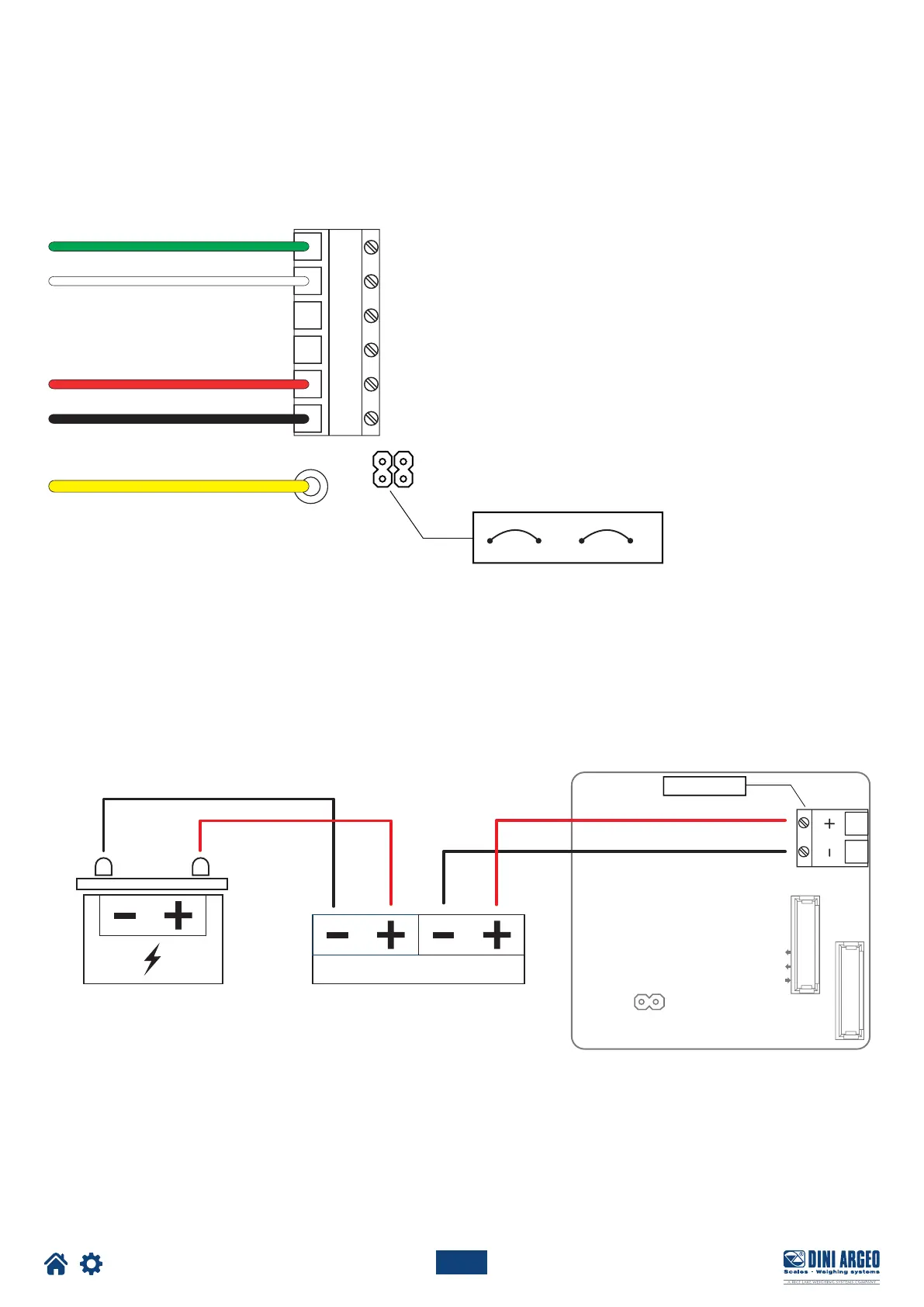

CONNECTING THE SENSOR TO THE INDICATOR
GREEN
WHITE
RED
BLACK
YELLOW
Connect the cable according to the following standards:
• Disconnect power to the instrument before performing any operation.
• Keep the cable length as short as possible.
• Avoid running the cable near heat sources.
• Make sure that the cable does not get caught in the moving parts of the forklift.
• Connect the cable wires to the indicator terminal block using suitably sized cable lugs.
INDICATOR POWER SUPPLY
5 Vdc from forklift through power supply (Dini Argeo supplies two power supply units that can be installed inside the indicator, optional).
BATTERY
FORKLIFT
DC-DC POWER SUPPLY UNIT
