TECH_MAN_ENG_LTP
OBTPRLT thermal printer with integrated bracket for fixing to the forklift. Powered directly from the weight indicator (if optional internal
power supply unit is present).

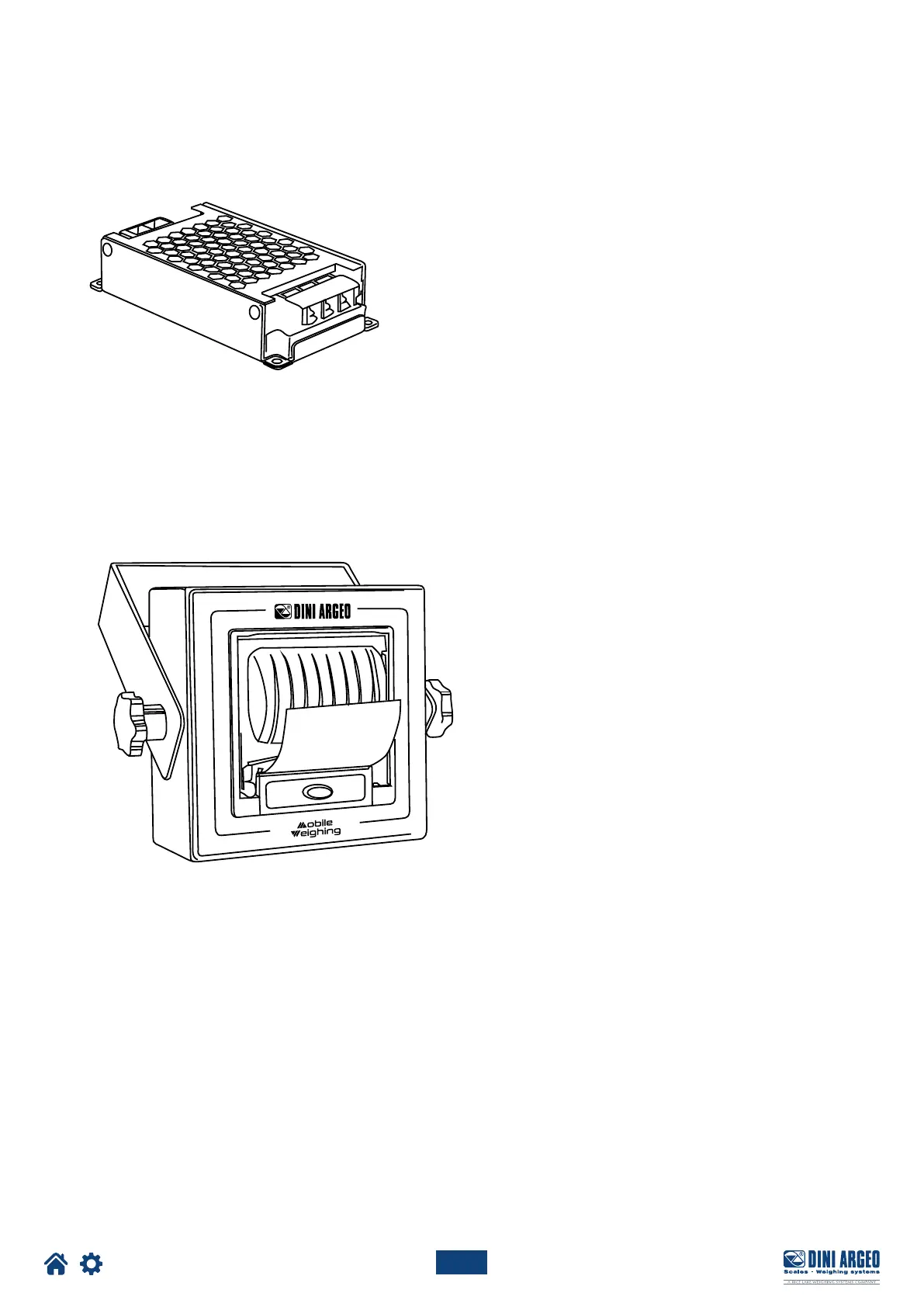

5. Power supply unit (optional)
6. Thermal printer (optional)
The appropriate optional ALxxV5 power supply unit with 18 to 72Vdc or 40 to 160Vdc input can be chosen according to the voltage on the forklift.
The ALxxV5 power supply units can be installed inside the weight indicator and can simultaneously power the OBTPRLT printer, optimising
the wiring of the various components.
