H1/12

ORANGE (-) 500mA GROUND-WHEN-ARMED OUTPUT

This wire supplies a (-) ground when the system is armed. This output

ceases when the system is disarmed. This wire controls operation of the

pre-wired starter kill relay, and can be used to control other optional

accessories.

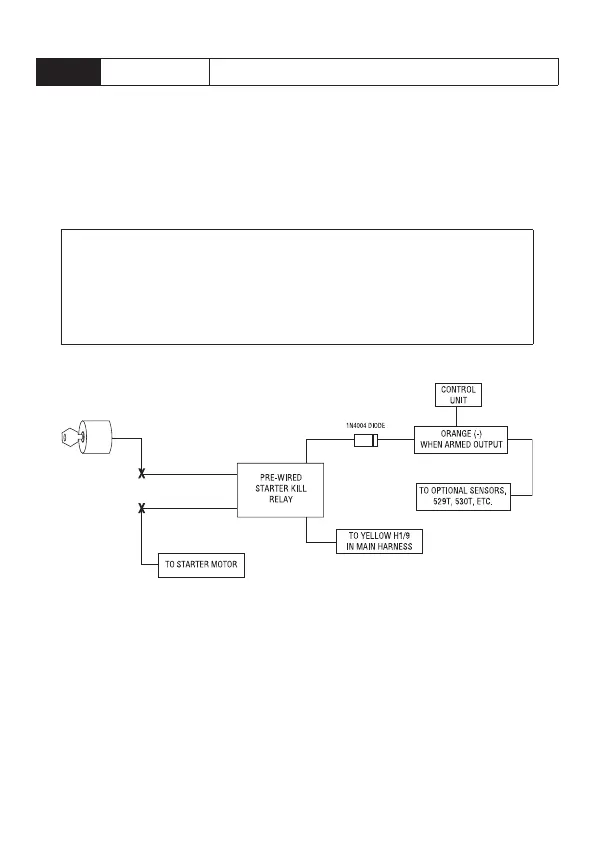

Important:

A 1- amp diode (type 1N4004) is required

when connecting the Orange wire to control module

529T or 530T window controller. Insert the diode as

shown below.
