Internal polarity jumper

A 10A fuse is used as both a fuse and a polarity jumper. This jumper

determines the light ﬂash output polarity. In the (+) position, the on-

board relay is enabled and the unit outputs (+)12V on the WHITE wire,

H1/2. In the (-) position, the onboard relay is enabled for (-) output on

the WHITE wire, H1/2. To access the jumper, remove the sliding door

from on top of the control module, as shown below.

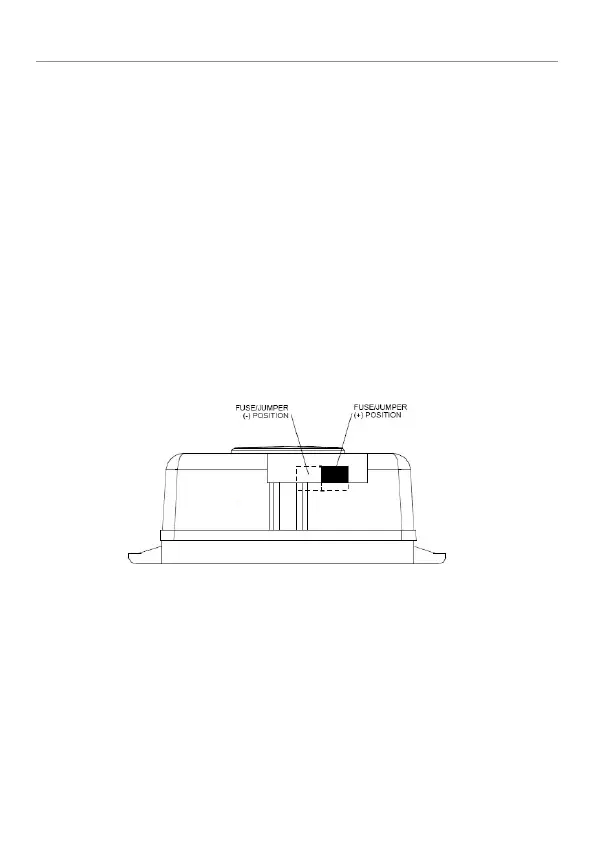

Light fuse jumper setting
