Note:
For parking light systems that draw 10 amps or more, the
jumper must be placed on the (-) light flash output. (refer to the Pro-
gramming Jumpers section of this guide.) P/N 8617 or a standard
automotive SPDT relay must be used on the H1/9 light flash output
wire.

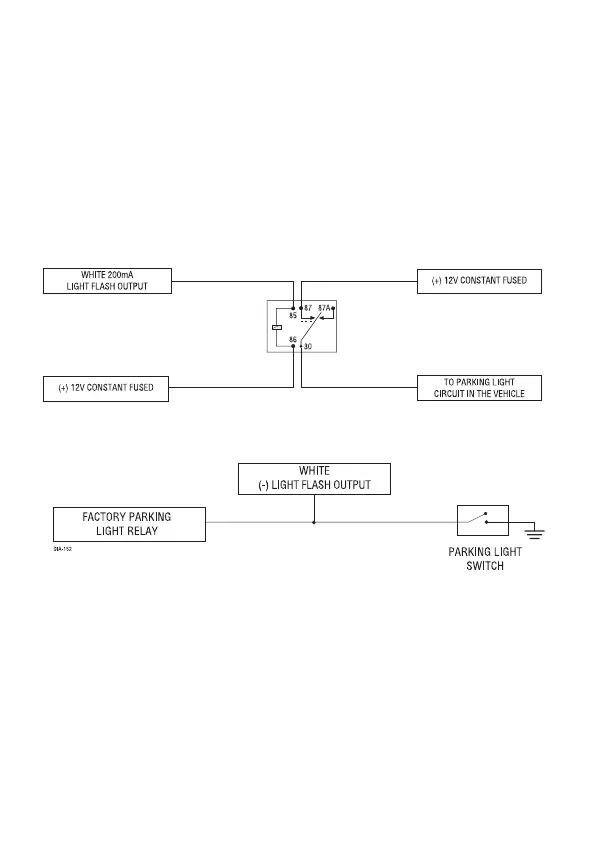

(+) Positive Light Flash Output
(-) Light Flash Output
