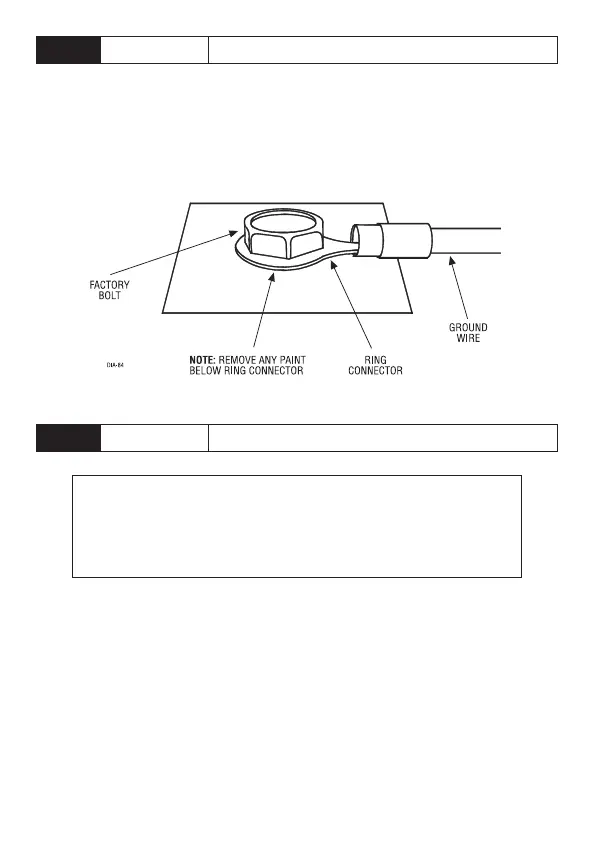

BLACK (-) CHASSIS GROUND CONNECTION
We recommend that you do not use a factory ground. Ground all
your components to the same point in the vehicle, (preferably the kick
panel). Scrape away any paint and use a factory bolt or make your
own ground with a self-tapping screw and a star washer.
H1/9
WHITE (+/-) LIGHT FLASH OUTPUT
Important:
Do NOT connect this wire to a negative
vehicle light flash wire before changing the program-
ming jumper to the negative polarity position or dam-
age to the vehicle light circuit may occur.
As factory configured, the H1/9 WHITE wire should be connected to
the (+) parking light wire. If the light flash polarity jumper is moved to
the (-) position (refer to the Programming Jumper section of this guide),
this wire then supplies (-) 200mA output.
