BROWN (-) HORN OUTPUT
This wire supplies a (-) 200 mA output that can be used to honk the
vehicle horn. It outputs a single pulse when locking the doors with the
remote, and two pulses when unlocking with the remote. This wire also
outputs pulses for 30 seconds when Panic Mode is activated. If the
vehicle has a (+) horn circuit, an optional relay can be used to interface
with the system.
Note: The honk upon locking and panic features are not available with
1-button remote.
H1/7

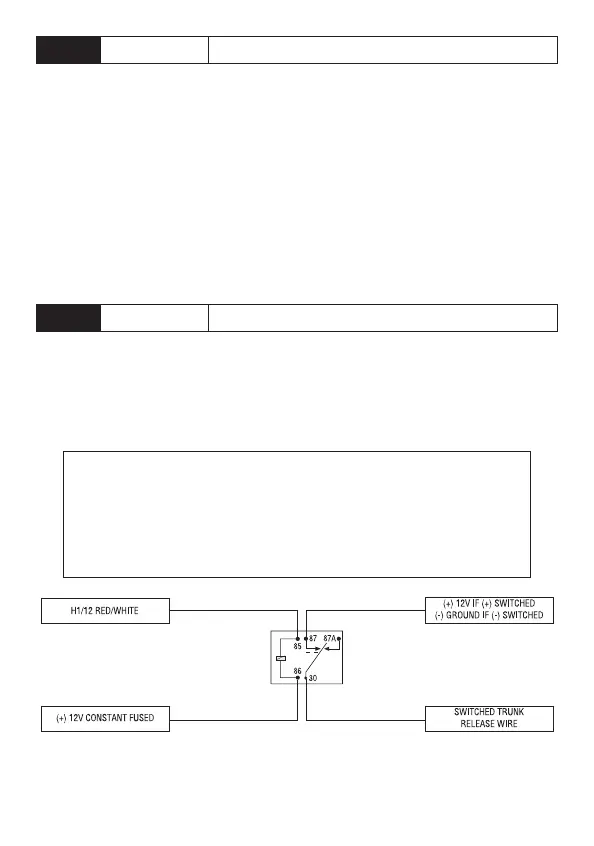

RED/WHITE TRUNK RELEASE (-) 200 mA OUTPUT
When the system receives the code controlling trunk release, for longer
than 1.5 seconds, the RED/WHITE wire will supply an output as long
as the transmission continues. This is often used to operate a trunk/
hatch release or other relay-driven function.
Important:
Never use this wire to drive anything except
a relay or low-current input! The transistorized output can
only supply 200 mA of current. Connecting directly to a
solenoid, motor, or other high-current device will cause
it to fail.
Note: This feature is not available with 1-button remote.
