H1/3
BROWN (-) HORN OUTPUT
This wire supplies a (-) 200 mA output that can be used to honk the vehicle horn.
It outputs a single pulse when locking the doors with the remote, and two pulses
when unlocking with the remote. This wire also outputs pulses for 30 seconds
when Panic Mode is activated. If the vehicle has a (+) horn circuit, an optional
relay can be used to interface with the system.
H1/4

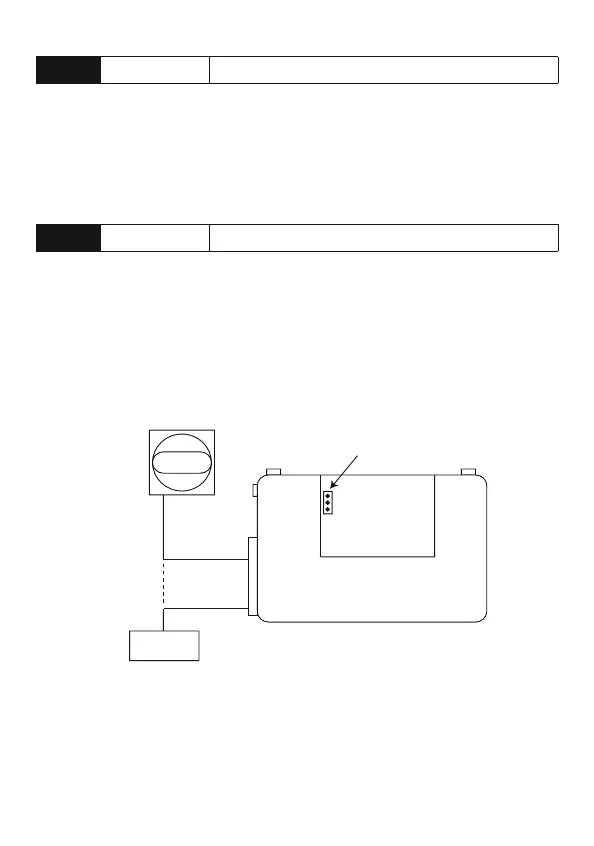

WHITE/BROWN LIGHT FLASH -ISOLATION WIRE - PIN 87a of onboard relay
This wire connects to pin 87a of the onboard light flash relay. It is used when-
ever light switch isolation on the vehicle is necessary. If the vehicle has a mul-
tiplex circuit that needs the light switch isolated, you can remove the onboard
light flash fuse and replace it with the specified resistor (paying attention to the
polarity selection).
