Directed Electronics Viper 5501 Installation Guide

21
© 2008 Directed Electronics. All rights reserved.
¢ Auxiliary harness (H2)
H2/1
LIGHT GREEN/BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT
This wire sends a negative pulse every time the remote start is activated, trunk
release is activated (programmable on/off) or when the doors are unlocked with
the remote. This can be used to pulse the disarm wire of the vehicle’s factory anti-
theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as shown
in the following diagrams.

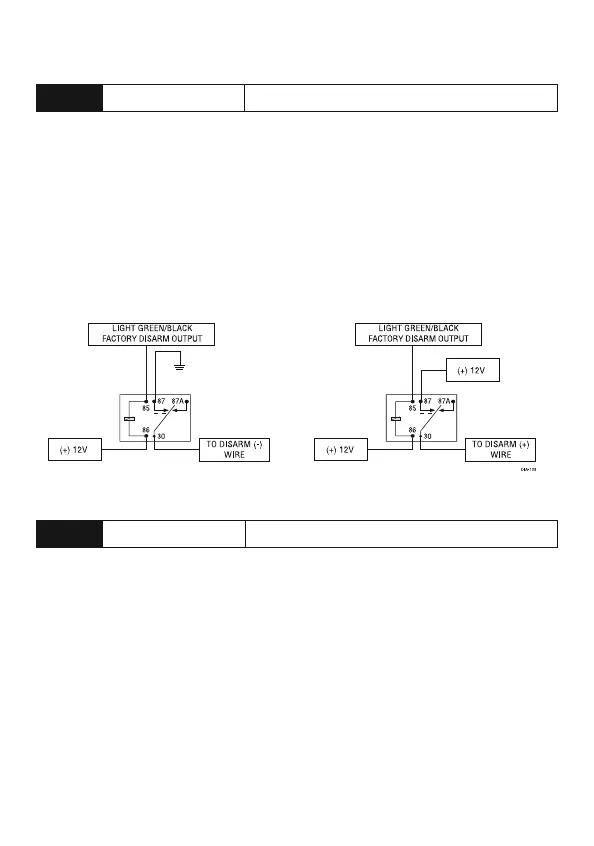

Relay for Negative (-)
Disarm Wire
Relay for Positive (+)
Disarm Wire
H2/2
LIGHT GREEN/WHITE (-) 200mA FACTORY ALARM ARM OUTPUT
This wire sends a negative pulse every time the remote start shuts down or when
the doors are locked with the remote. This can be used to pulse the arm wire
of the vehicle’s factory anti-theft device. Use a relay to send a (-) or (+) pulse to
the arm wire.
