Dirtywave M8 Operation Manual

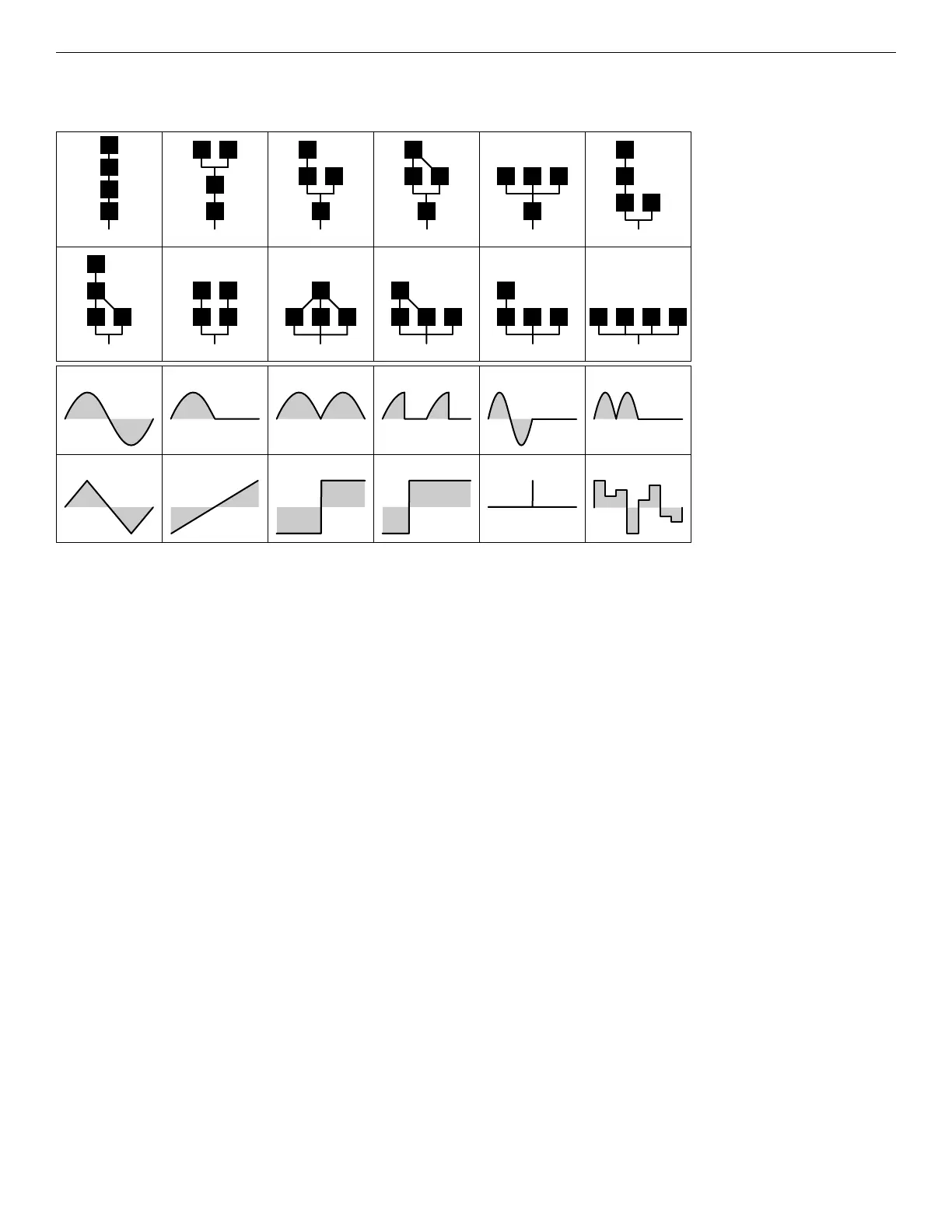

FM Synth Algorithms and Shapes
A>B>C>D [A+B]>C>D
A
B
C
D
A B
C
D
00
[A>B+C]>D
A
B C
D
02
[A>B+A>C]>D
A
B C
D
0301
[A>B]+[A>C]+[A>D] [A>B]+[A>C]+D
A
A
B BC C
D
[A>B]+[C>D]
A
B
C
D
D
07 08
[A+B+C]>D [A>B>C]+D
D
D
A
A
B
B
C
C
04 05
[A>B>C]+[A>B>D]
D
A
B
C
06 09
[A>B]+C+D
A
B C
D
10
D
A+B+C+D
A B C
D
11
SIN SW2 SW3 SW4 SW5 SW6
SAW SQU PUL IMPTRI NOISE
Multi-mode Filter Parameters
• FILTER - Filter type - Lowpass, Highpass, Bandpass, and Bandstop.
• CUTOFF - Filter cuto frequency.
• RES - Filter resonance amount.
Amplication Parameters
• AMP - Amplies the waveform. Any value higher than the maximum level allowed is
handled according to the “LIM” setting.
• LIM - Set the limit / clipping behavior of the amplied signal.
• CLIP - Any value higher than the maximum level is clipped.
• SIN - The waveform is fed through a sine function.
• FOLD - Any value higher than the maximum level is folded back into itself.
• WRAP - Any value higher than the maximum level is vertically wrapped.
• POST - The amplication is applied with soft-clipping after the lter stage.
Mixer Parameters
• DRY - Dry volume sent to the mixer channel.
• CHO - Chorus send eect volume.
• DEL - Delay send eect volume.
• REV - Reverb send eect volume.
