9.1 Main menu

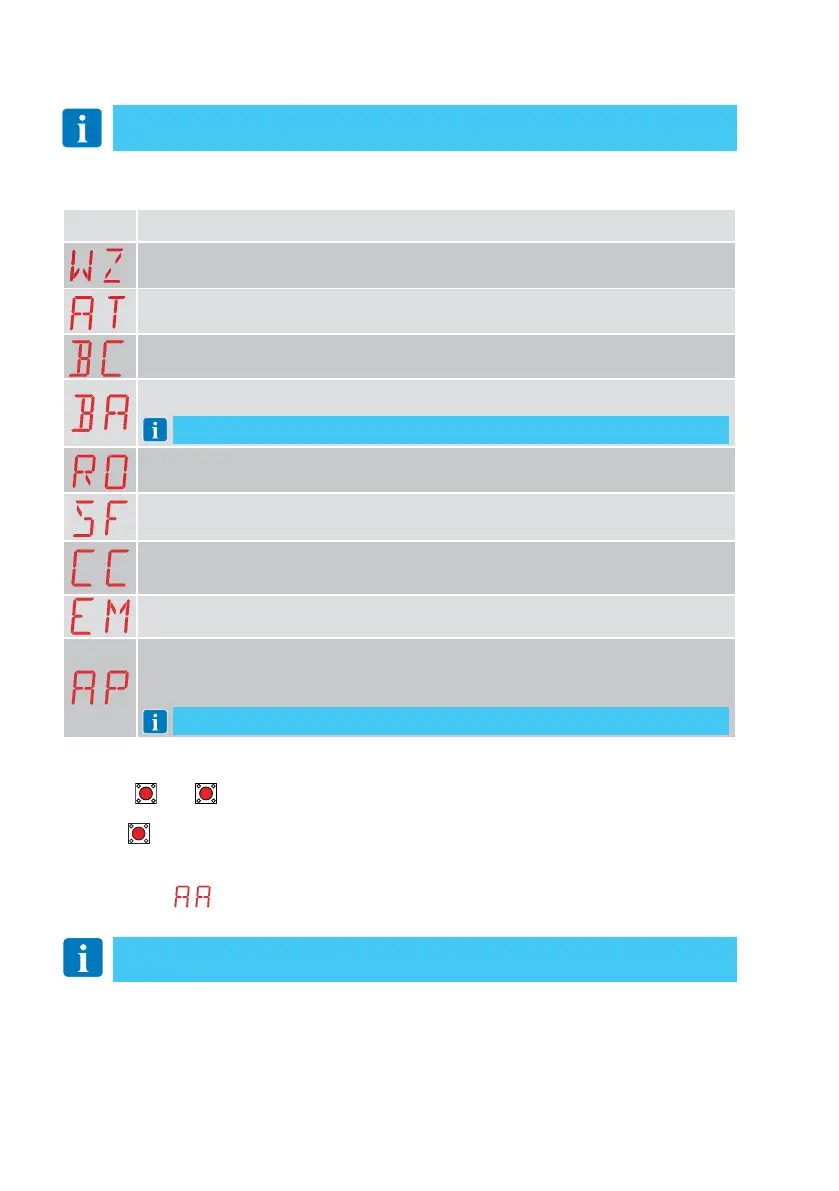

Display Description
WZ - Quick configuration wizard
Quick configuration menu
AT - Automatic Configuration
The menu allows you to manage the automatic configurations of the control panel.
BC - Basic Configuration
The menu allows you to display and modify the main settings of the control panel.
BA - Basic Adjustments
The menu allows you to display and modify the main adjustments of the control panel.
NOTE: some settings require at least three operations before they are set correctly.
RO - Radio Operations
The menu is used to manage the radio functions of the control panel.
SF - Special Functions
The menu allows you to set the password and manage the special functions in the control panel
(alarm management, diagnostics enabling, FW updating).
CC - Cycle Counter
The menu allows you to display the number of operations carried out by the automation and
manage the maintenance interventions.
EM - Energy Management
This menu may be used to view and modify energy saving settings and adjustments (Green Mode).
AP - Advanced Parameters
The menu allows you to display and modify the advanced settings and adjustments of the control
panel (limit switch mode, selection of devices connected to the terminals, disengagement duration
adjustments, flashing light adjustments, etc.).
NOTE: some settings require at least three operations before they are set correctly.
From the main menu you can access the second level menu as follows:
• use the
UP
and
DOWN
keys to select the required function;
• press
ENTER
to confirm.
After confirming the selection, you access the second level menu.
For each function of the main menu, there are also additional configurations that can be viewed
by enabling the
function (see the following paragraph). The factory settings for the various
second level menu parameters are underlined in green.
9. Configuration and settings menu
NOTE: depending on the type of automation and operating mode, some menus may not
be available.
NOTE: to check if the parameters have actually been modified, quit the relative param-
eter and then access it again. The modifications will take effect from the next operation.
