DITEC LCA85 User Manual

27
IP2371EN
1
2
3
A
B C
1/2
1/3
PO/PC = OF
PO/PC = 01
PO/PC = 02
SPEED
Full
Command
WARNING: the parameters shown in the figure must be adjusted to comply with exerted
forces as outlined in EN 12453.

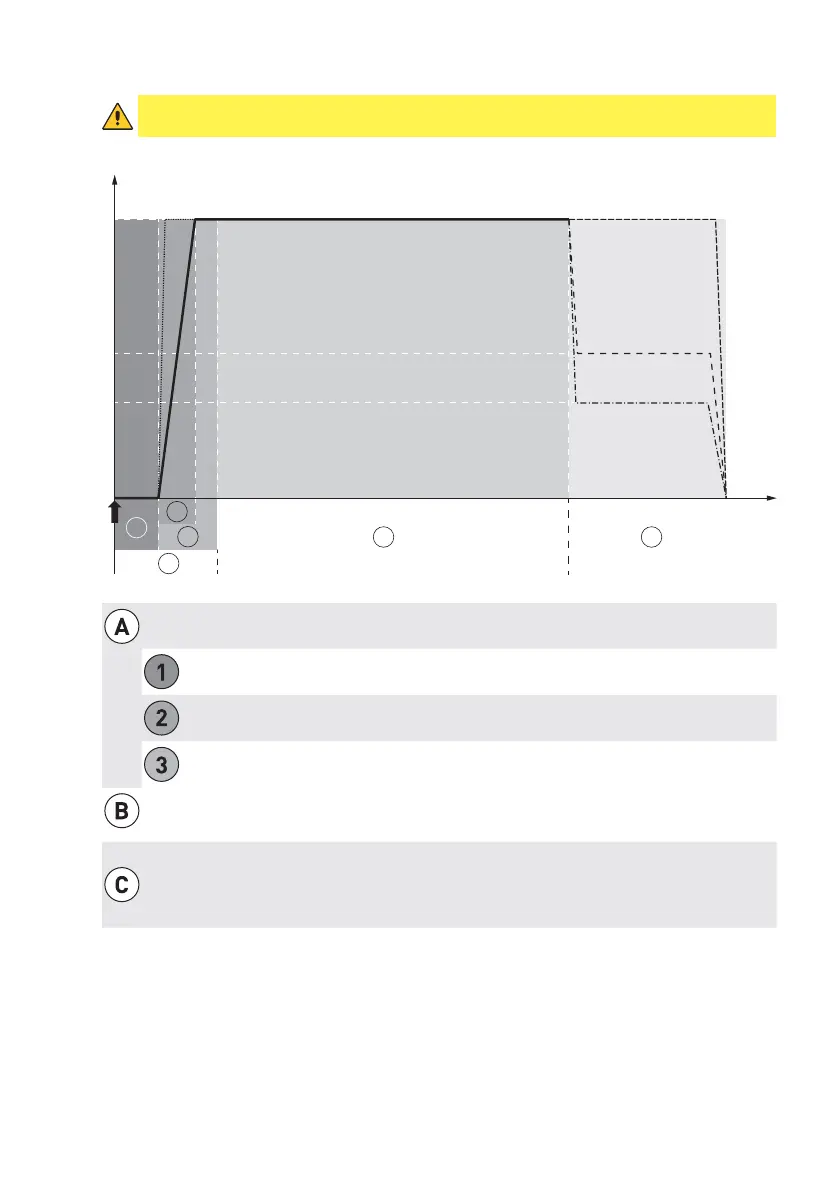

8.4 Synthetic diagram of operation
TIME
START-UP PHASE
Pre-flashing time: parameters WO (opening) and WC (closure)
Acceleration time: acceleration time adjustment - TA (opening) and TQ (closure)
Start time (without detecting obstacles): start-up at the maximum power MP - ST (opening and
closure)
FULL SPEED PHASE
Obstacle detection sensitivity:
• Parameters R1 (opening) and R2 (closure).
• Obstacle detection time: Parameter DT (opening and closure)
FINAL APPROACH PHASE
Slowdown distance:
• Parameters OB (opening) and CB (closure).
• Slowdown speed: Parameters PO (opening) and PC (closure).
• Obstacle detection sensitivity: Parameters r1 (opening) and r2 (closure)
• Obstacle detection time: Parameters dT (opening and closure)
