DITEC LCA85 User Manual

11
IP2371EN

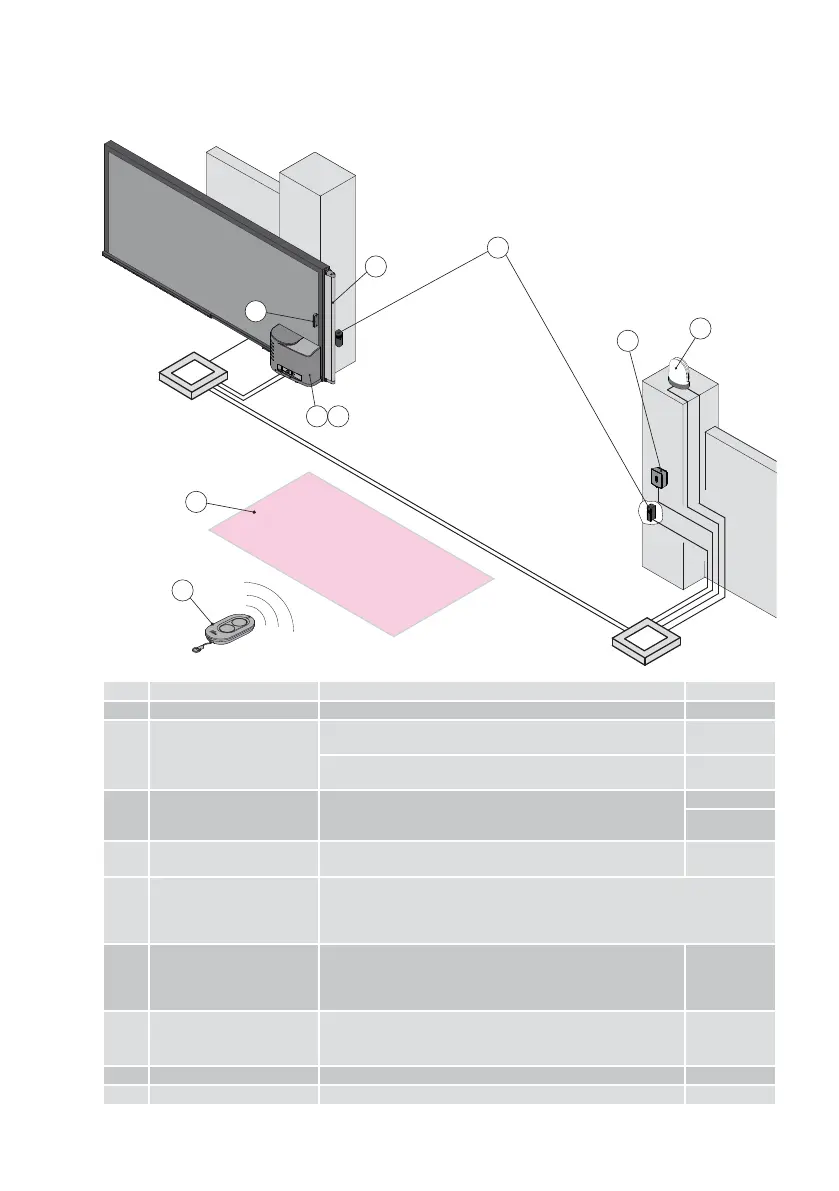

3.1 CROSS installation
3.1.1 Standard installation
Ref. Code Description Cable
1 ZEN Transmitter /
2
FLM
FL24
Flashing light 230 V
Flashing light 24 V
2 x 1 mm²
Antenna (integrated in the flashing light)
RG-58 coax
cable (50 Ω)
3
AXK5
AXR7
AXK4
Key selector switch
Transponder
Digital combination wireless keypad
4 x 0.5 mm²
/
4
CROSS18EP
CROSS18VEP
Actuator (motor) 230 V with mechanical limit switch
Actuator (motor) 230 V with magnetic limit switch
3G x 1.5 mm²
A
Connect the power supply to a certified-compliant omnipolar switch (not
included) with a contact opening distance of at least 3mm. Connection to the
mains must be via an independent conduit, separated from the connections
to the command and safety devices.
5
LIN2
LIN2B
AXP2
LAB4
Photocells
Photocells
Photocells
Photocells IP55
4 x 0.5 mm²
6
SOFAP20
SOF2M20-SOF3M20
SOFA15-SOFA20-SOFA25
Safety edge
Safety edge
Safety edge
2 x 0,5 mm² min
7 GOPAV Radio system for sensitive edges /
8 LAB9 Magnetic loop detector 2 x 1,5 mm²
1
8
A
3
2
5
4
6
7
