MAJOR COMPONENT DESCRIPTION P SERIES
Page 36 of 100
ELECTRICAL
DOMESTIC
220 VAC
Transformer
Provides 24 and 12
VAC power to the
Machine Controller
Provides 24 and 12
VAC power to the
Machine Controller
Fuse
1.6 Amp Slo Blo in
the Power
Distribution Box -
Control Board
Power (includes
display and MDB
Peripherals)
1.0 Amp Slo Blo in
the Power
Distribution Box -
Control Board
Power, (includes
display and MDB
Peripherals)
Relay
Potter & Brumfield
T91P5D52-24
240 VAC / 20 A
-NO / 10A-NC
Potter & Brumfield
T91P5D52-24
240 VAC / 20 A
-NO / 10A-NC
Choke
Foster
A-16015
5MH 6A
Schaffner
FN2080-10/06
110/250VAC/50-
60HZ 10A
Amber and
Green Power
Switch
Interrupts hot side
of incoming power.
Interrupts hot side of
incoming power.
REFRIGERATION
DOMESTIC 220 VAC
Compressor
Embraco, 1/3 HP,
FFI 12HBX 115 V/
60 Hz 1 Phase
Unit uses 9.0 oz. of
134A Refrigerant
NEK6212Z 220/50
1/3 EmBraco
Unit uses 7.5 oz. of
134A Refrigerant
Start Relay
115 VAC,
1.351.605
110 VAC, 1.351.605
Start
Capacitor
115 VAC
378-454 MFD /
110V
110 VAC
378-454 mfd / 110V
Thermal
Overload
115 VAC
MRT 22AFZ-5590
110 VAC
MRT 22AFZ-5590
Condenser
Fan
9W Motor
115 V/60HZ
5KSM81FFL 3022T
Blade – 8-3/4” dia.
9W Motor
230V/50/60HZ
EmBraco PN:
13355043
Blade – 230mm
Aluminum
Evaporator
Fan
6.5W Motor
115 VAC
OSM 2045X1
Blade – 6” dia.
Motor 0.38A
220/240V 50Hz
6" 4-Blade Plastic
VEND MOTOR OPERATION
The Control Board is responsible for the operation of
the Vend Motor Assembly. It supplies 24VDC to the
Vend Motors through the P1 Connector of the
Control Board and monitors its movement from the
Encoder through the J4 Connector.

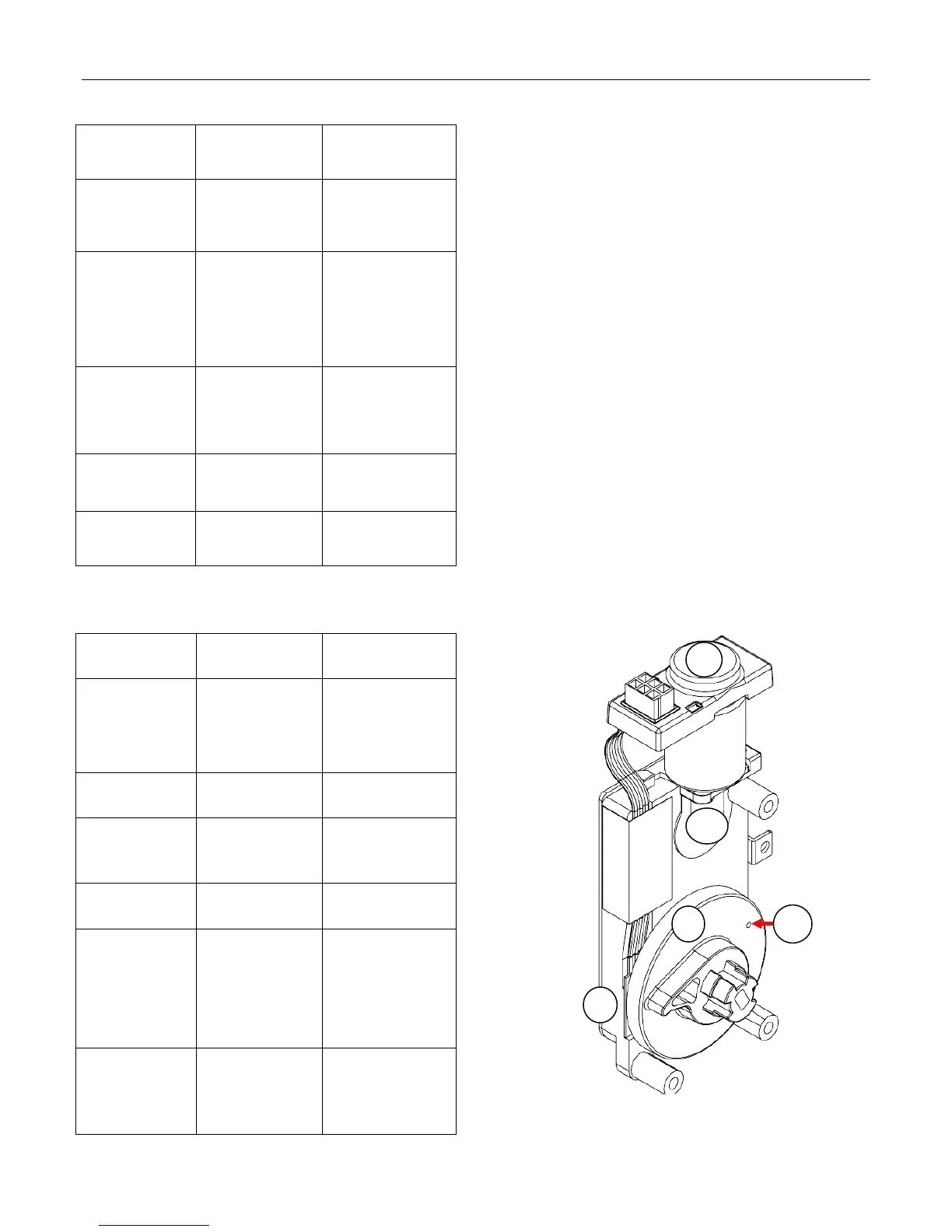

The Vend Motor Assembly consists of an Encoder
(a), Motor and Gearbox (b), Cam Assembly (c) and
a Home Sensor (d).
The Encoder sends counts to the Control Board to
advise it of its position.
The Cam Assembly includes a Magnet (e) which
actuates the Home Sensor when Vend Motor returns
to the Home Position.
The Home Position is the starting position of each
rotation of the Vend Motor. When the Main Door is
closed, the Control Board identifies columns which
are deemed as SOLD OUT or jammed. The Display
will read “PRIME” and runs the Vend Motor to the
Home Position. The Rotor is reloaded in this
process.
When a selection is activated, the Control Board
sends 24VDC to the Vend Motor. In turn the
Encoder sends pulses to the Control Board which
stops the Vend Motor at a predetermined point or
Vend Angle in programming.
a
b
C
d
e
