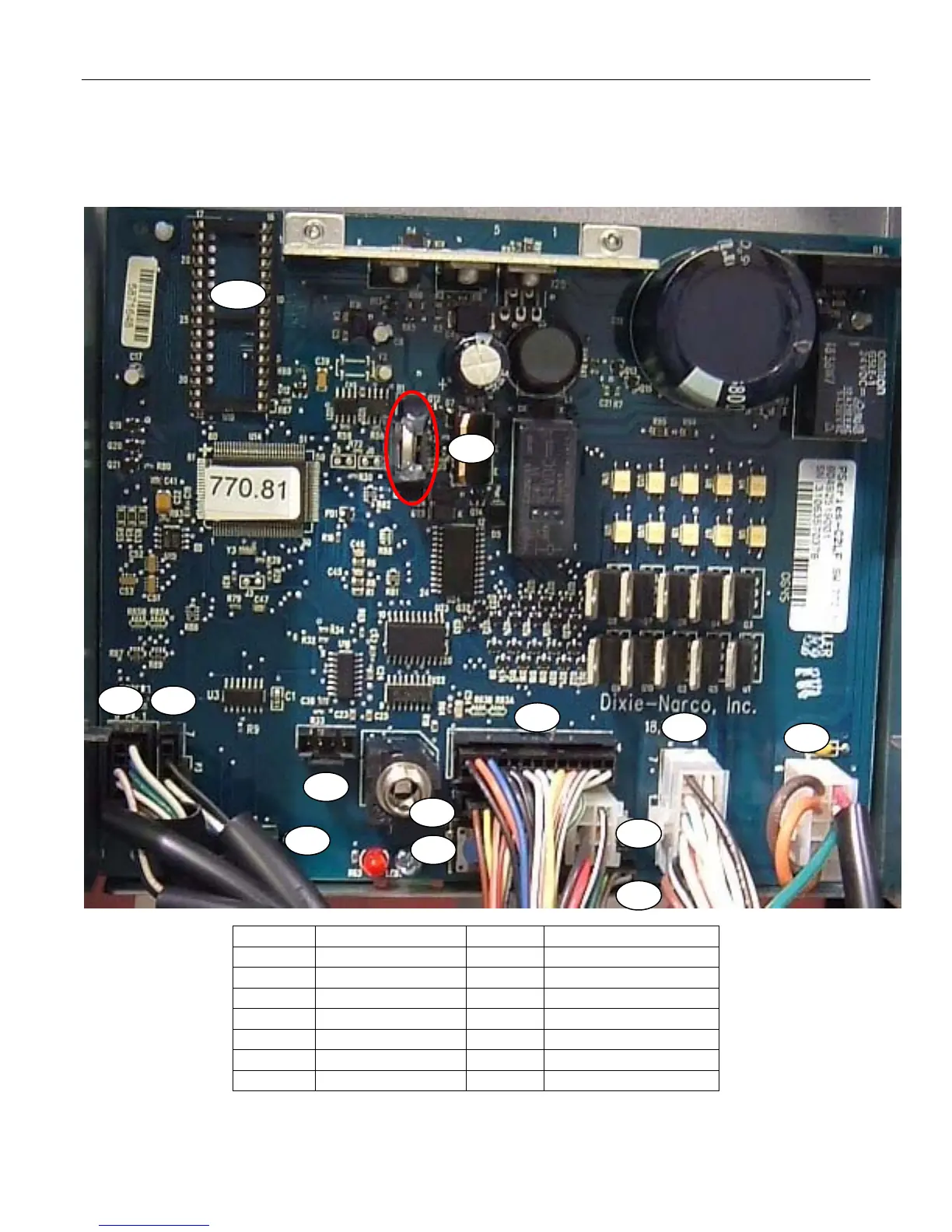

Dixie DN720P - SBC CONTROL BOARD LAYOUT; Component Identification

PROGRAMMING P SERIES
Page 37 of 100
SBC
CONTROLBOARD
Position Description Position Description
P1 Motor P8 Energy Management
P2 Secondary DEX J1 AC Power
P3 Display J2 DEX
P4 Select Switches J4 Home Switch
P5 Temp Sensor J7 Optional
P7 MDB B1 Battery
U19 EPROM Socket S1 Service Switch
S1
P7
P8
J7
P5
J1
P1
J4
P2
P3 P4
B1
U19
