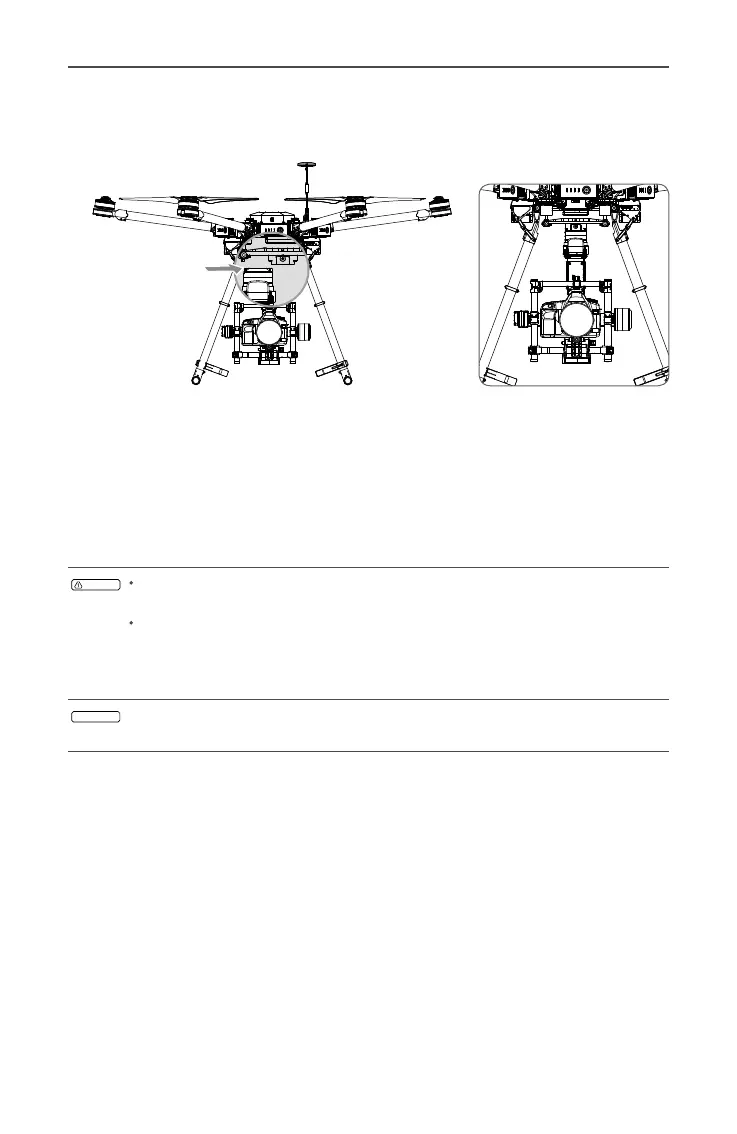

5. Slide the gimbal into the gimbal connector of the vibration absorber, then tighten the
lock-knob when you hear a “click”, which indicates the lock has engaged.
6. Connect the CAN cable to the CAN2 port on the Ronin-MX.
7. Use the DJI SRW-60G wireless video link to transmit HD images without obstructing
the pan axis movements of the Ronin-MX. Refer to the SRW-60G User Manual for
instructions.
8. If not using the DJI SRW-60G, HD images can also be transmitted by connecting the
DJI Lightbridge 2’s Air System to the camera’s HDMI port.
WARNING
Be sure the Ronin-MX is mounted properly and rmly, and all the connections
are correct and will not obstruct the Ronin-MX’s movements.
For users of the Matrice 600 and Ronin-MX in the United States, Federal
Communications Commission (FCC) regulation prohibits the operation of
unlicensed devices transmitting in the 57-64 GHz on aircraft or satellites. The
SRW-60G operates on an unlicensed basis in the 57-64 GHz band.
NOTICE
Note that wire connections for the video link will obstruct the pan axis movement
at certain angles. The pan axis cannot rotate 360 degrees continuously.
