Installation and Commissioning
4. Installation and Commissioning

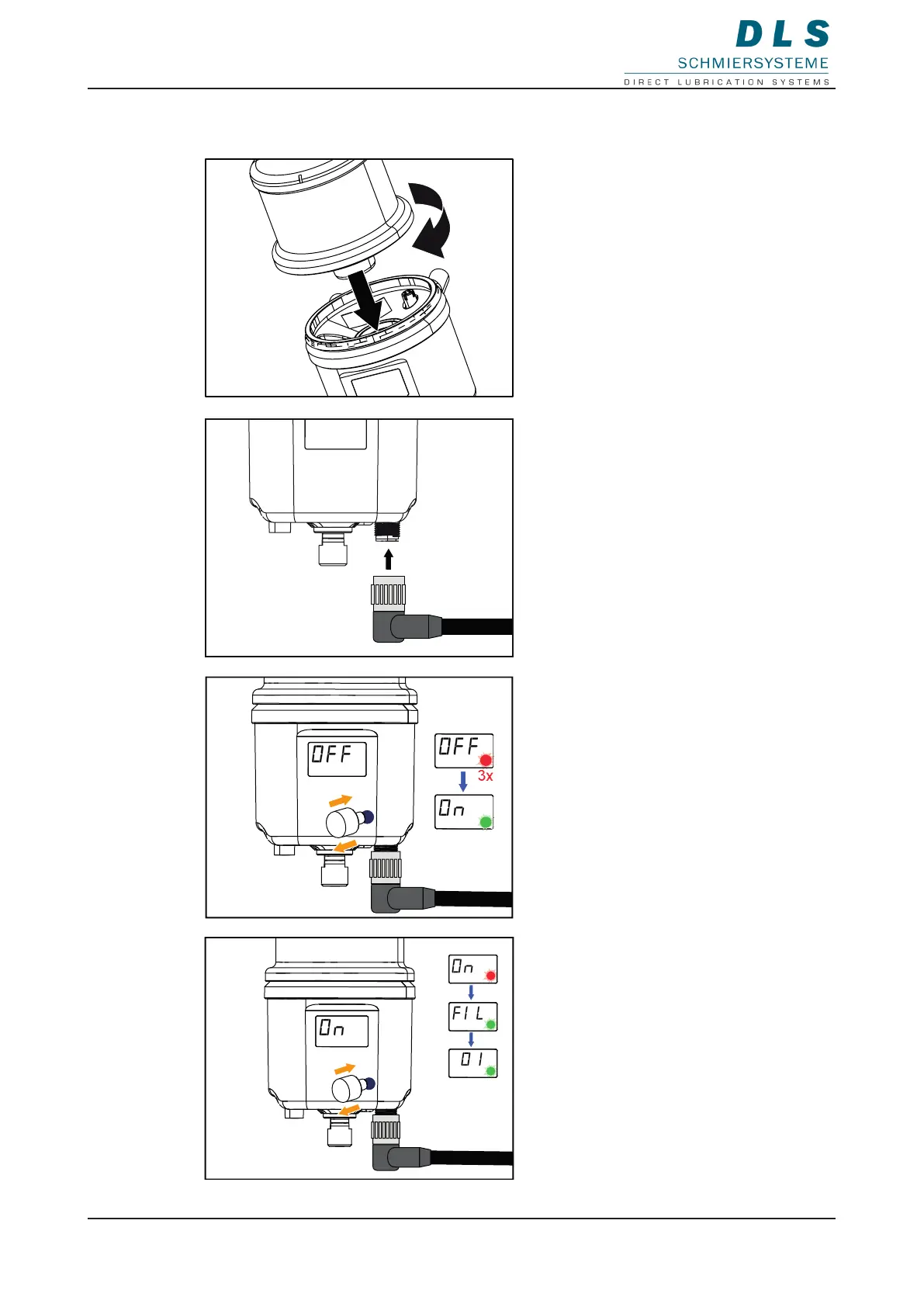

1. Unscrew the cartridge cap.
2. Screw the cartridge onto the Flexx-
Pump 125
3. Mount the FlexxPump 125 in the
desired position (see 3.3 Technical
Data for assembly data).
4. Connect the controller cable.
SET
A
A
B
B
5. Hold the magnetic pin
against the area of activity
A) Until "On" appears.
6. Remove the magnetic pin (B).
SET
A
B
7x
A
B
40x
1 MAX
7. Hold the magnetic pin against the
area of activity unitl "FIL" appears.
Ventings starts
8. Remove the magnetic pin (B) and put
it back into the holder
