14 734N Installation and Programming Guide | Digital Monitoring Products, Inc.

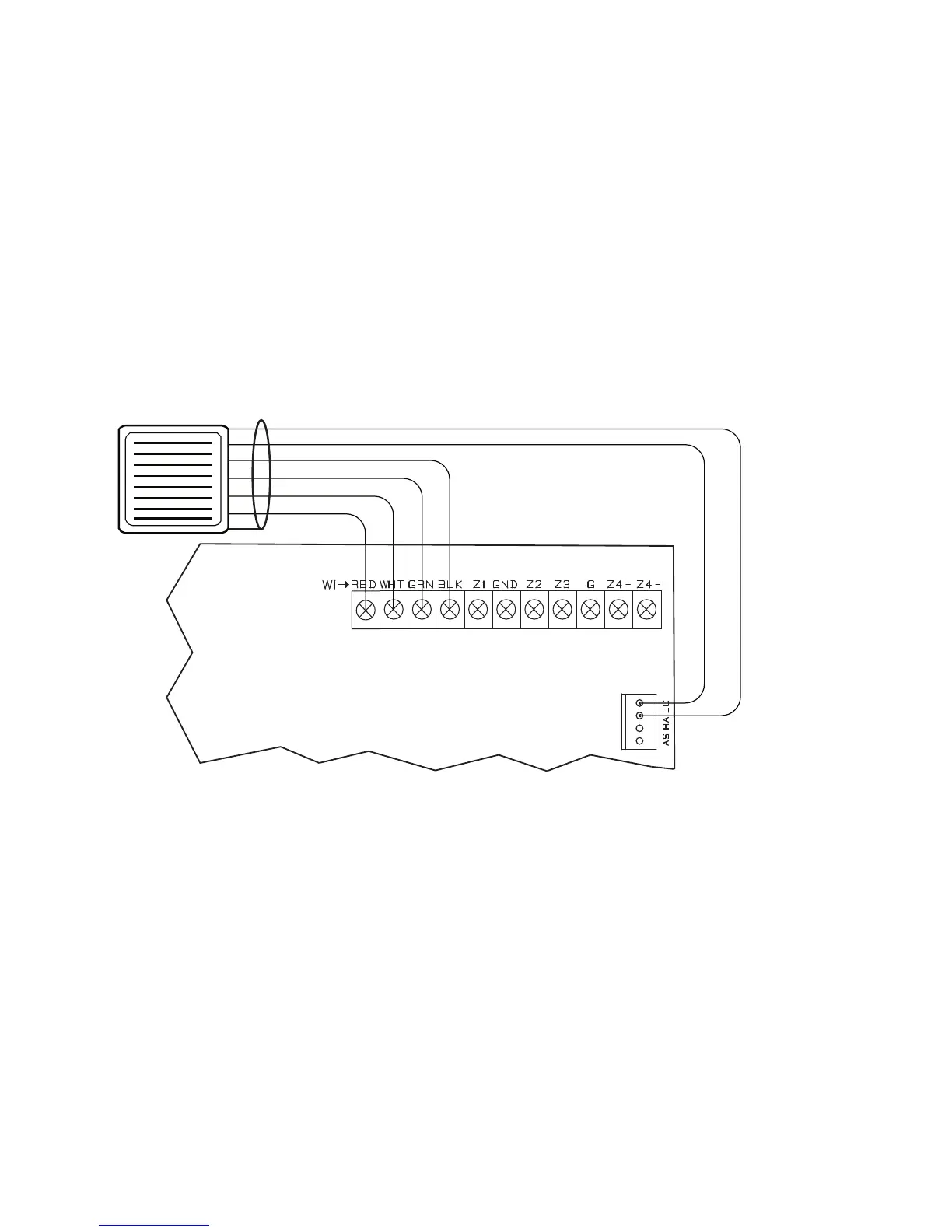

Figure 10: Card Reader Wiring

Card Reader

Red (12/24VDC)

White (Data 1)

Black (GND)

Green (Data 0)

Shield

Orange/Brown

Yellow
