User’s Guide
This section of the user’s guide provides information on using the XT Series
™
system door access capability. If your system is not currently
using any door access devices, disregard this section. The keypad displays for All/Perimeter or Home/Away operation are dependent on
how your keypad was programmed by your alarm dealer.
There are three different operating modes: Door Strike, Arming and Disarming, and Entry Delay. All of the examples below assume that
your system requires a user code to arm and disarm the protection.
DOOR STRIKE

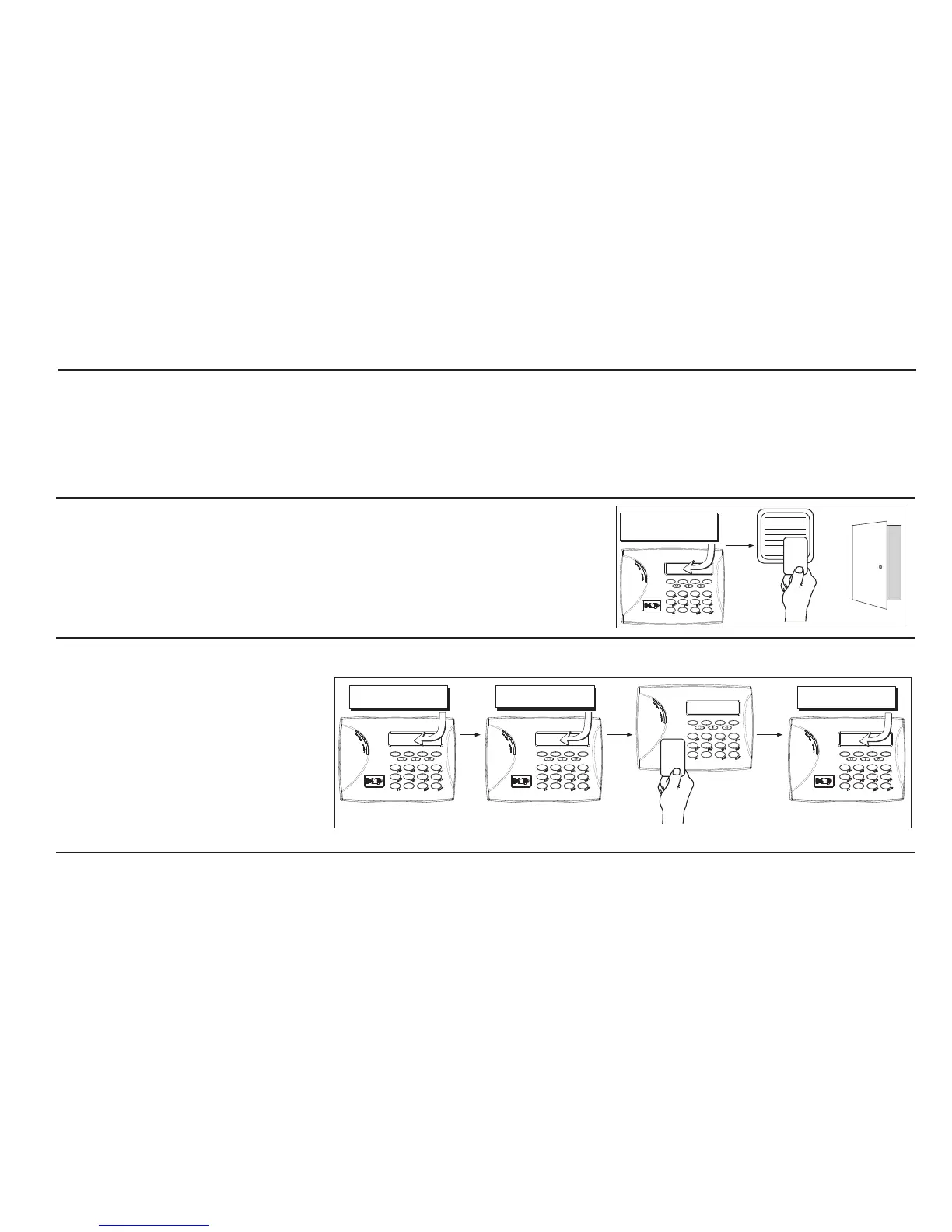

Area and All/Perimeter Door Strike — From the Status List, present your card to the
reader. When the card is validated by the system, the Door Strike relay activates for
5 seconds during which time you can open the door. Once you open the door, you have
40 seconds to exit and close the door before the Zone 2 Soft-Shunt expires.
Home/Away systems only activate the Door Strike relay when arming and disarming.
ARMING AND DISARMING AN AREA SYSTEM
Press CMD, the keypad displays ARM
DISARM?. Press the select key or area
under either option.
The keypad displays ENTER CODE: -.
Present your card to the reader. Once
the system validates the card, all
areas accessible by you arm or disarm
automatically and the Door Strike relay
activates.
ABC SECURITY
ARM DISARM
ABC SECURITY
ENTER CODE: –
ABC SECURITY
ALL? NO YES
ABC SECURITY
MON 10:20 AM
