Introduction XT30/XT50 User Guide 5
Power/Armed Logo
Thinline™ Wireless Keypads:
The backlit logo on the keypad
indicates the keypad Power status
and Armed status of the panel. Depending on the operation, the
logo displays Red or Green as listed in the table.

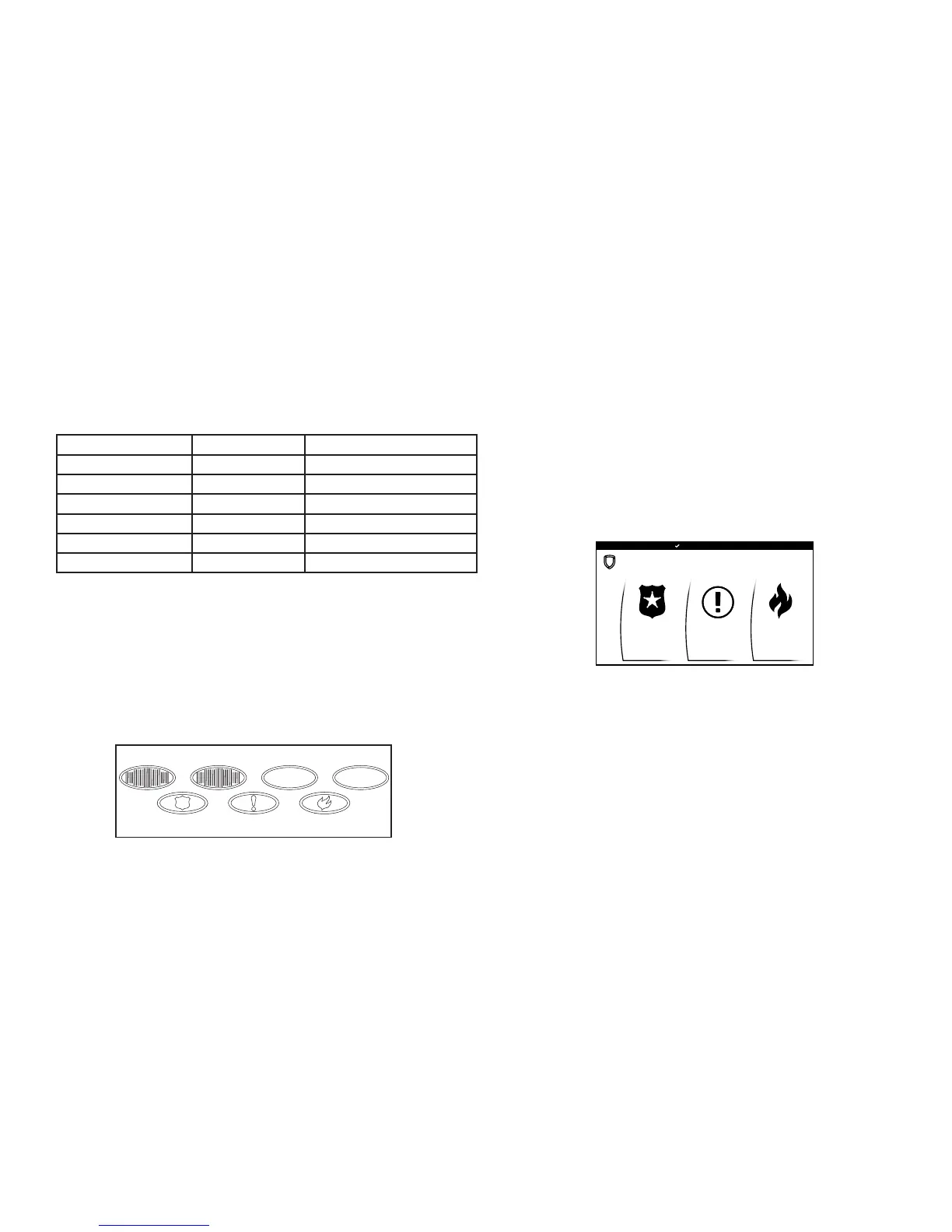

Color and Activity Armed Status Keypad Power Status
Green Steady Panel Disarmed AC Power OK, Battery OK
Green Blinking Panel Disarmed AC Power OK, Battery Fault
No Light Panel Disarmed AC Power Fault, Battery OK
Red Steady Panel Armed AC Power OK, Battery OK
Red/Green Alternate Panel Armed AC Power OK, Battery Fault
Red Blinking Panel Armed AC Power Fault, Battery OK
Panic Functions
Your keypad may be set up to send a Panic, Emergency, or Fire
report to the central station. This function is optional. If this option
is programmed for your keypad, icons display below the top row
select keys or areas.
Thinline™, Aqualite™, Icon and Wireless Keypads
Press and hold the two select keys adjacent to the desired icon
for 2 seconds, until a beep from the keypad is heard.
Top Row Select Keys
Police Emergency Fire
Shaded Keys To Indicate the Police Panic Function
7/0 Panic Function
Thinline™ and Aqualite™ Keypads may also be programmed
at installation to allow the user to initiate an optional Panic
alarm by simultaneously pressing and holding the 7 and 0 (zero)
keys. When the 7 and 0 keys are pressed, the keypad sends a
panic report to the central station. The 7/0 Panic Function is
not available on Thinline Icon, Wireless, or Graphic Touchscreen
Keypads.
Graphic Touchscreen Keypads
Press Panic in the carousel menu and press the desired icon for
2 seconds until a beep is heard.
Graphic Touchscreen Keypad Panic Functions
Common Keys on All Keypads
Data Entry Digit Keys
These keys allow you to enter your user code when arming
or disarming your system or enter other information into the
keypad.
CMD key
The CMD key allows you to advance through the keypad displays,
the User Menu, or complete a data entry function.
Back Arrow (<—) key
The Back Arrow (<—) allows you to go back through the keypad
displays or to erase the last character you entered.
PANIC OPTIONS
POLICE EMERGENCY FIRE
