DNP DP-DS80D - Print Method; Multi-Layout

26
Dai Nippon Printing Co.,Ltd.
[DP-DS80D Printer Driver] Instruction Manual for Windows 7,8
2
2
.
.
7
7
P
P
r
r
i
i
n
n
t
t
M
M
e
e
t
t
h
h
o
o
d
d

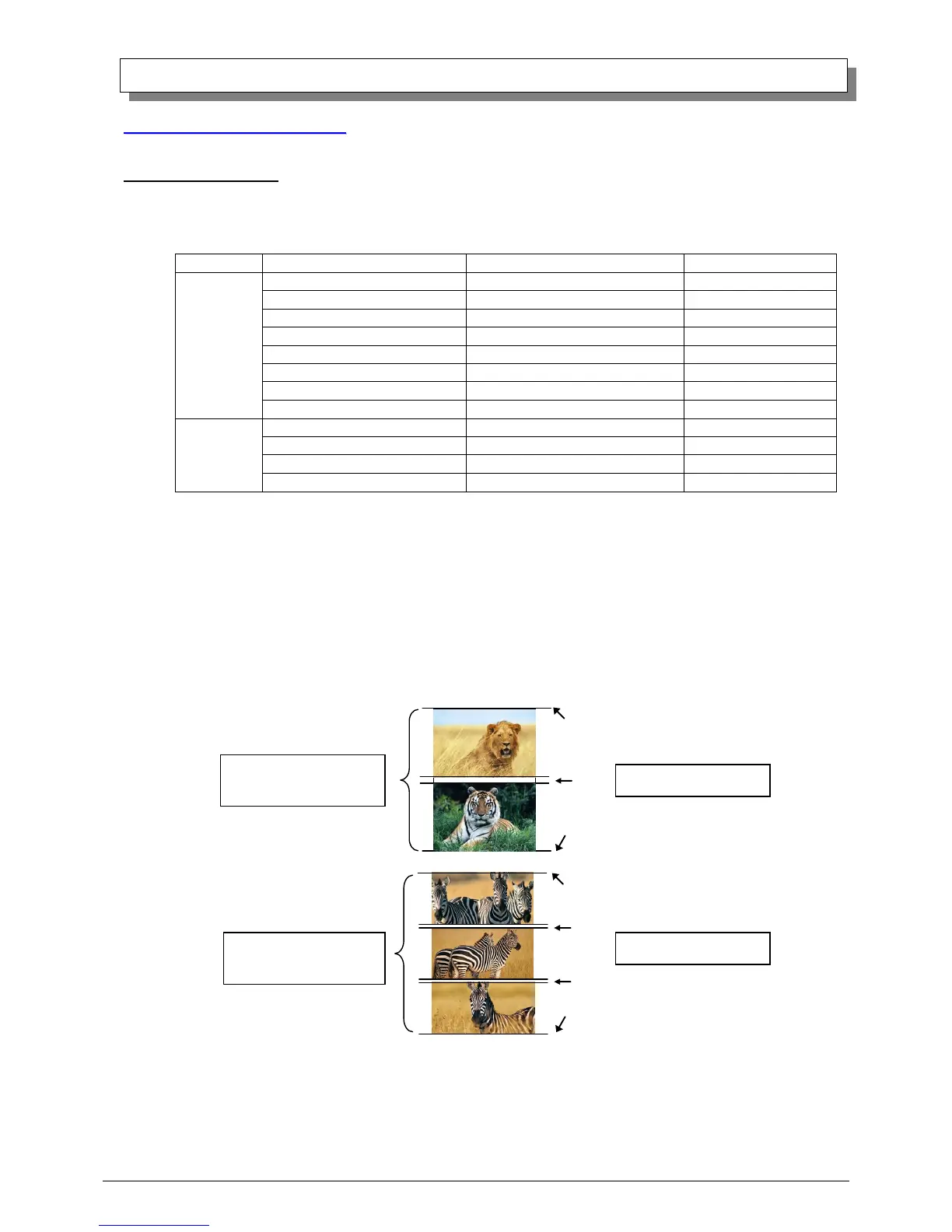

2.7.1 Multi-layout
When the DP-DS80D is using 8x12, 8x10 size media, 2 or 3 image layout is possible.
With the printer driver paper setting, multi-image layout is made possible, and the image sizes are as follows.
Layout designation
Driver paper setting (layout)
Image size（㎜）
Remarks
Roll paper
(8x4) x 2
(207.3x104.6) x 2
(8x5) x 2
(207.3x130.0) x 2
(8x6) x 2
(207.3x155.4) x 2
(8x5) _ (8x4)
(207.3x130.0) x (207.3x104.6)
(8x6) _ (8x4)
(207.3x155.4) x (207.3x104.6)
(8x6) _ (8x5)
(207.3x155.4) x (207.3x130.0)
Media size 8x12 only
(8x8) _ (8x4)
(207.3x206.2) x (207.3x104.6)
Media size 8x12 only
(8x4) x 3
(207.3x104.6) x 3
Media size 8x12 only
Cut paper
(8x4) x 2
(207.3x104.6) x 2
(8x5) x 2
(207.3x130.0) x 2
(8x6) x 2
(207.3x155.4) x 2
Media size 8x12 only
(8x4) x 3
(207.3x104.6) x 3
Media size 8x12 only
Multiple layout is possible under the following conditions.
1.The printer driver paper size is set to one of the above sizes.
2.Multiple images are sent from the application.
Note）Because the multi-image layout occurs on a per job basis, this works when there are multiple images for 1
job.If you want to print the same image, be sure to send the image data for each copy to be printed.The printer
prints 2 or 3 images in one operation, and the paper is cut as it is fed out.
<Multi-image layout patterns>
The following combinations are possible for the multi-image layout patterns.
Layout for 1 sheet with 2
same-size images ⇒ x2
Cut as sheet is fed out
Layout for 1 sheet with 3
same-size images ⇒ x3
Cut as sheet is fed out
