Doka Ringlock - Corner Solutions with internal Cantilever Platforms

User Information Ringlock Corner Solutions
999817902 - 11/2020
17

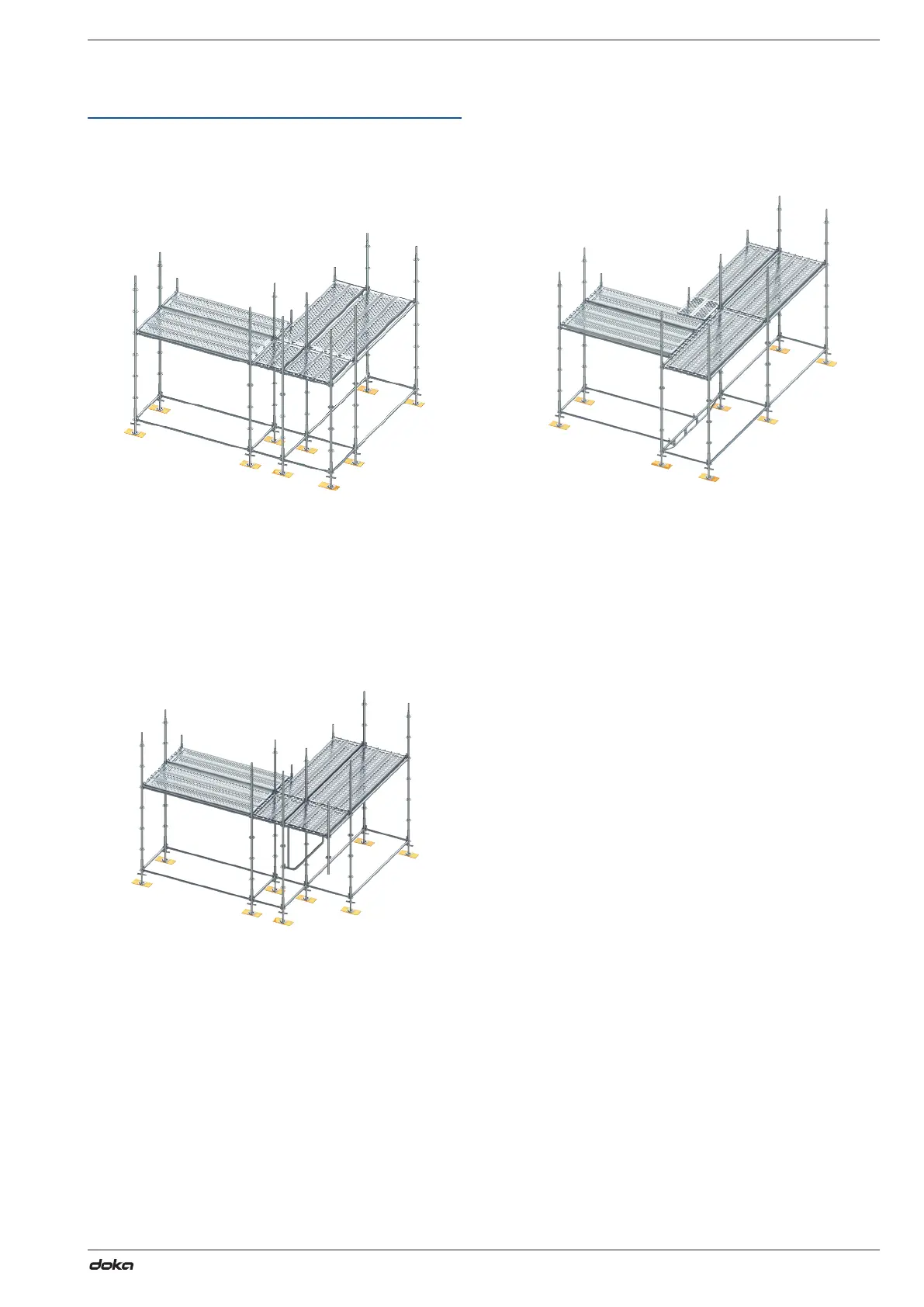

Corner Solutions with internal
Cantilever Platforms
All Ledgers are present at the deck level and an inter-
nal Standard is used. An equivalent size bay to match
the internal cantilever platform has been added. A fully
closed corner has been developed with internal canti-
levered platforms.
The outside Ledger at platform level has been re-
placed with a Console Bracket. In order to create the
Guardrail a Standard is attached to the terminal on
the Console Bracket. An equivalent size bay to match
the internal cantilever platform has been added. A
fully closed corner has been developed with internal
cantilevered platforms and minimizes the number of
components in comparison to the layout above.
Aybyreturniscreatedbyjoiningthesca󰀨oldsto-
gether anywhere along the span of the adjacent bay.
By using a Truss Ledger at the Plank level the Planks
can lock into the Truss Ledger at any point. There may
be a gap between the cantilevered boards which can
be covered using the Gap Filler Plank depending on
the length of the gap.
Bracing and Edge Protection removed for clarity.
