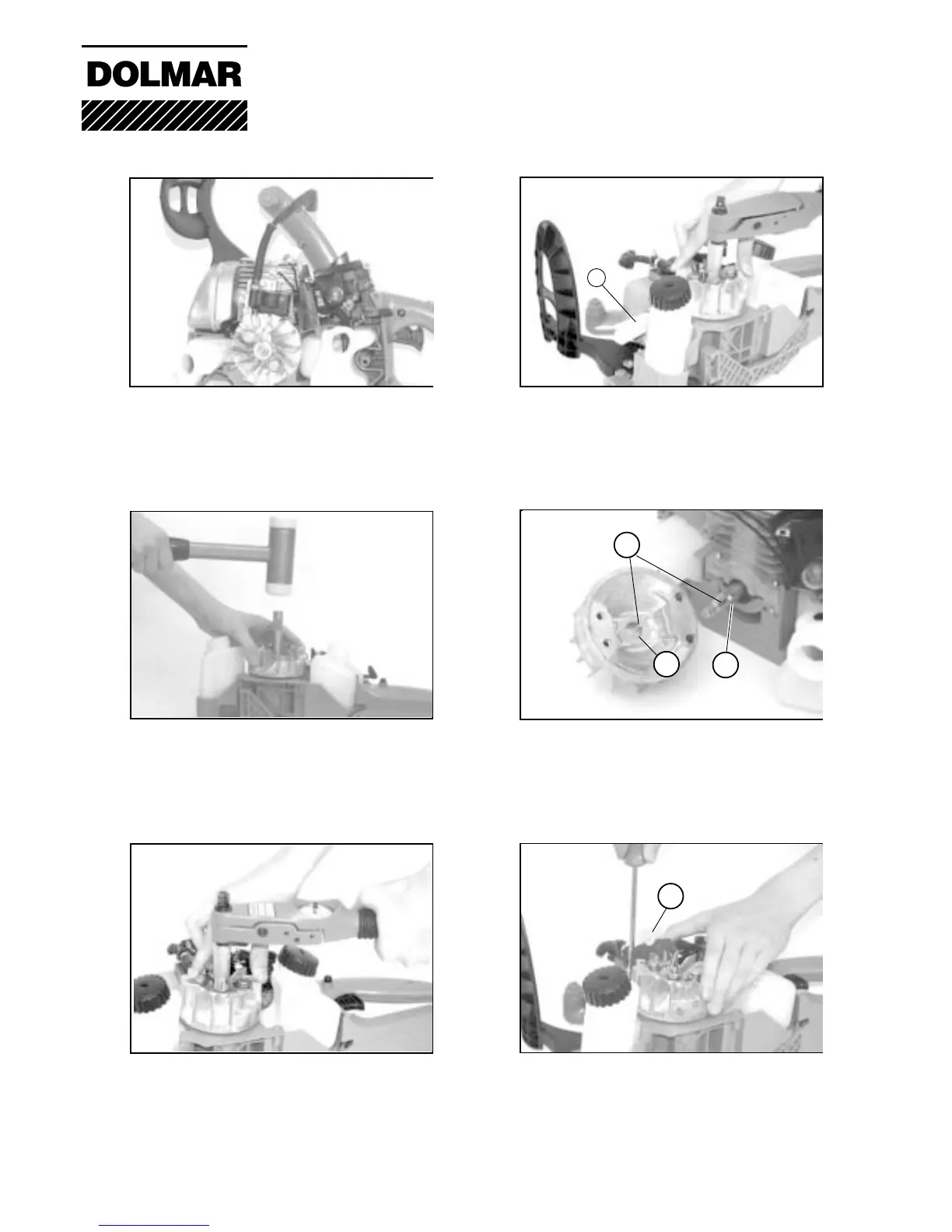

04-04 Mounting the flywheel
Before assembly, clean crankshaft pivot (1)
and flywheel cone (2). The flywheel contains a
device to prevent torsion. When positioning,
insert the torsion guard into the groove of the
crankshaft (3).
04-04 Removing the flywheel
Block motor with piston stop wedge (x)
944.602.001 and loosen flywheel nut.
04-04 Removing the ignition system
Pull off the short-circuit cable flat plug and
unscrew the 2 screws of the ignition
system.
04-04 Removing the flywheel
Screw flywheel remover 944.500.880
onto the crankshaft, pull flywheel upwards
and remove the flywheel from the cone by
tapping on the remover.
3
2
1
04-04 Mounting the flywheel
Set the crack between the flywheel mag-
net and the poles of the ignition coil at 0.2
mm using the setting gauge 944.500.890
(4).
4
04-04 Mounting the flywheel
Tighten the flywheel nut with 20 + 2.5 Nm.
04 Ignition system, flywheel
