Page 13

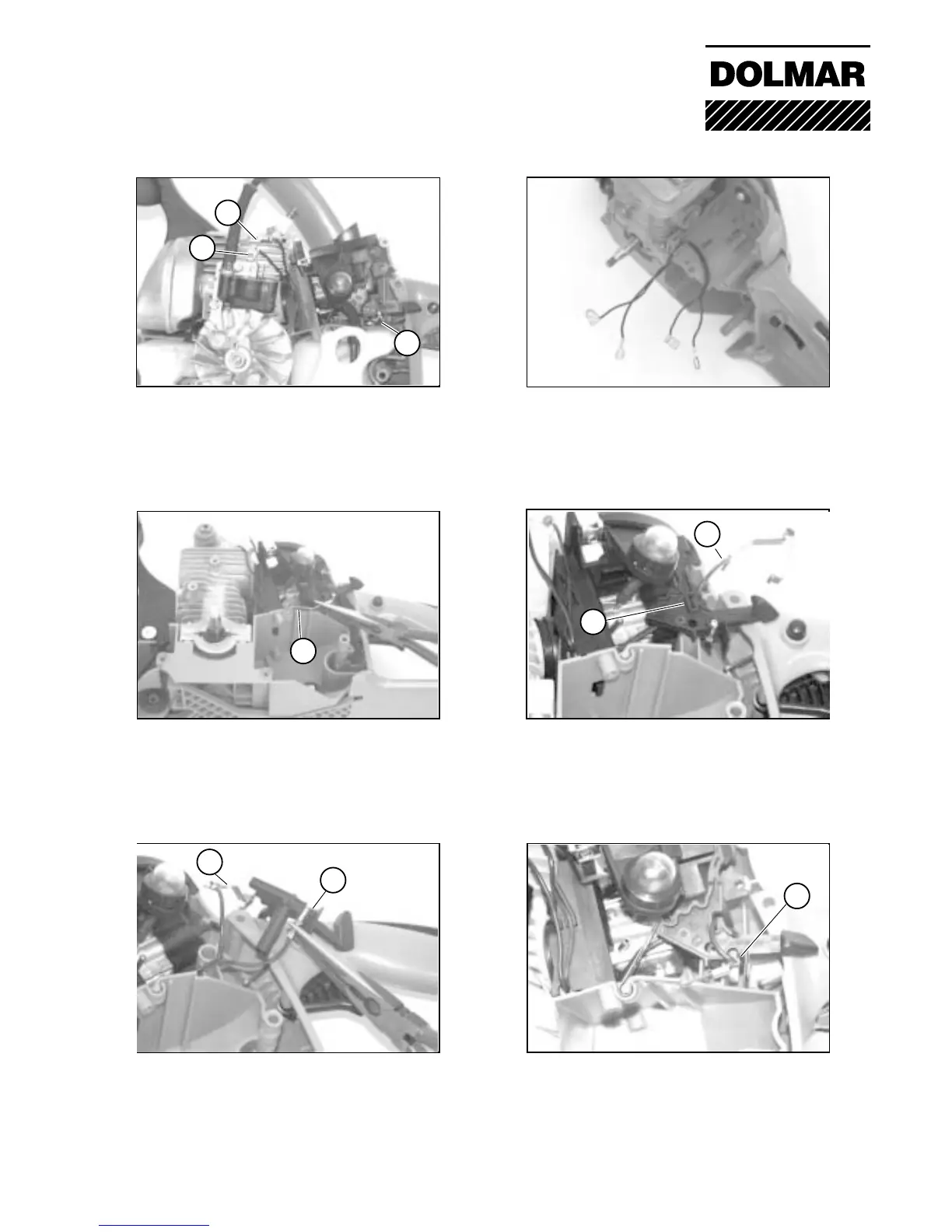

04-04 Removing the short-circuit cable
Remove the contact spring (4) from the
housing pocket.
04-04 Replacing the short-circuit cable
The 2 core short-circuit cable connects the
contacts of the ignition coil (1) and earth (2)
with the stop switch (3).
1
2
3
04-04 Replacing the short-circuit cable
The short-circuit cable is taken under the
carburetor sleeve in a clamping strip to the
choke and operating lever.
4
5
5
04-04 Removing the choke lever
Remove the cable with the flat plug (5)
from the guide pocket (6). Push the choke
lever in the direction of ‘stop’ in order to
swing the arm from the housing pocket.
04-04 Removing the short-circuit cable
The flat plug contact (5) is connected with
the contact spring. The round contact (6) is
inserted from the clutch side into the open-
ing in the choke lever.
5
6
04-04 Mounting the short-circuit cable
Check whether, in the STOP position, the
round contact in the choke lever is posi-
tioned on the metal tongue of the contact
spring.
7
04 Ignition system, short-circuit cable
