Networking(2of3)
 

IfthesystemhasPLDPROforeachstagetheneach
displaymustbeaddressed,but ifthereis1PGD1
displaythenthedisplayaddressshouldbe32.Ifthere
isa2
nd
PGD1displayitshouldbeaddressed28.
Chillerstage2needstohaveadisplayaddressof17,
chillerstage3willbe18and4willbe19.I/OBoard
addressshouldreflectthechangeyouhavejustmad e
PressandholdUp,Downandentersimultaneously
untilscreen
changes,about6seconds
Atthispointscreenmaygoblank,ifitdoes,startfrom
step1again(above)andensuredisplayaddressand
I/Oboardaddressiscorrectforstage..Pressenterto
gointotheterminalconfigsettings
Trm1=16forstage1,17forstage2,
18ifstage3etc…
andPrforPLDPROdisplay
ID32&Sh‐thiswillallowforPGD1controlifused.
ID28&Sh‐thiswillallowfor2
nd
PGD1controlifused.
Onlyenablecontrolsthatarebeingutilisedintheworking
PressenteruntilyougettoOK?ChangetoYestosave
settings.
Powerdownstageandrepeatprocessforallstages,onceallcomplete.Turnonstage1andrepeatthis
page(only)ensuringTrm1=16Pr
Step1

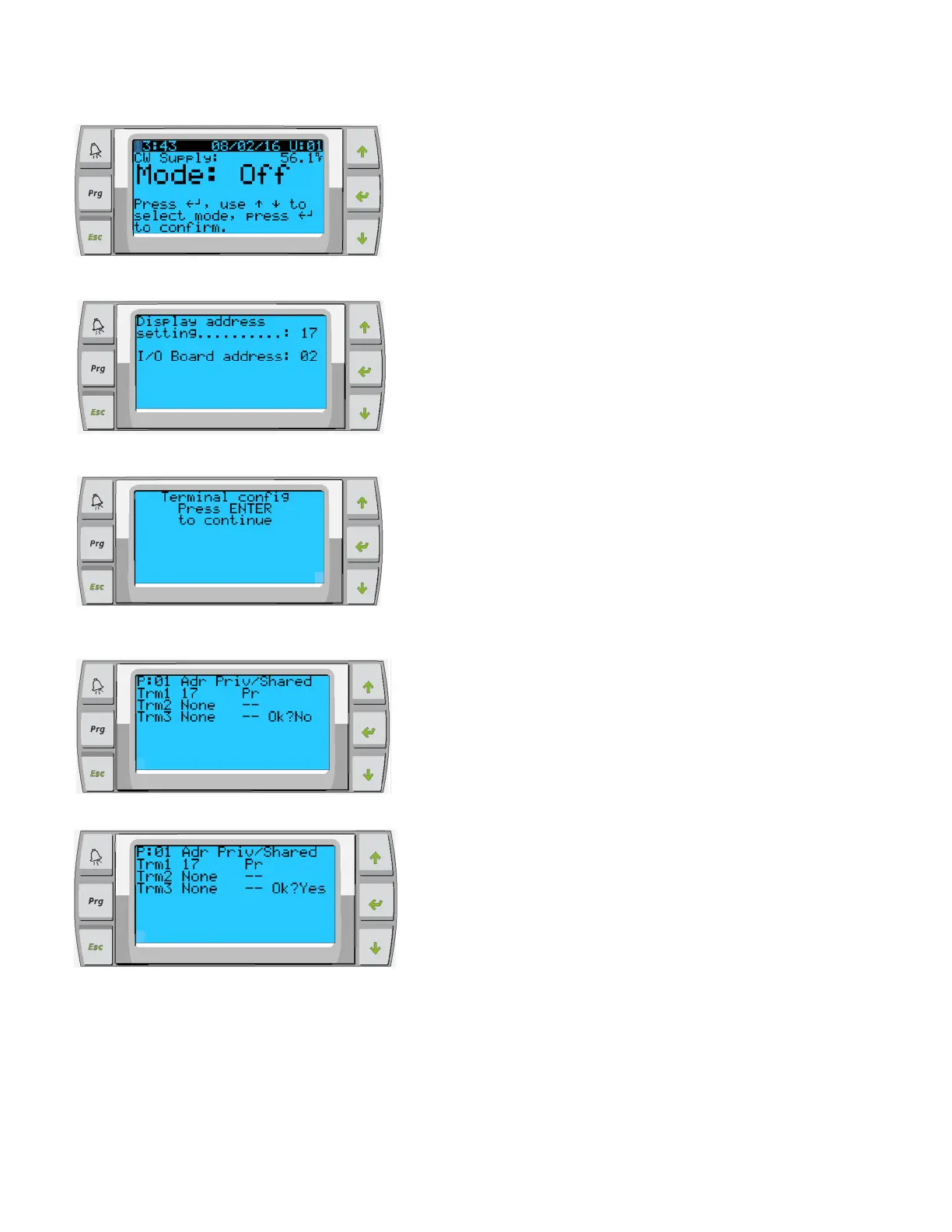

Figure18
Figure19
Figure20
Figure21
Figure22
