Dometic SmartStart III - Networking

28
Networking(1of3)
 

Whensettingupthe stagesfornetworking,youneed toensurethe
chillersarenotconnected.Stageonerequiresminimalchangesso
startwithstage2leavingstage1tilllast.Poweroffallstagesexcept

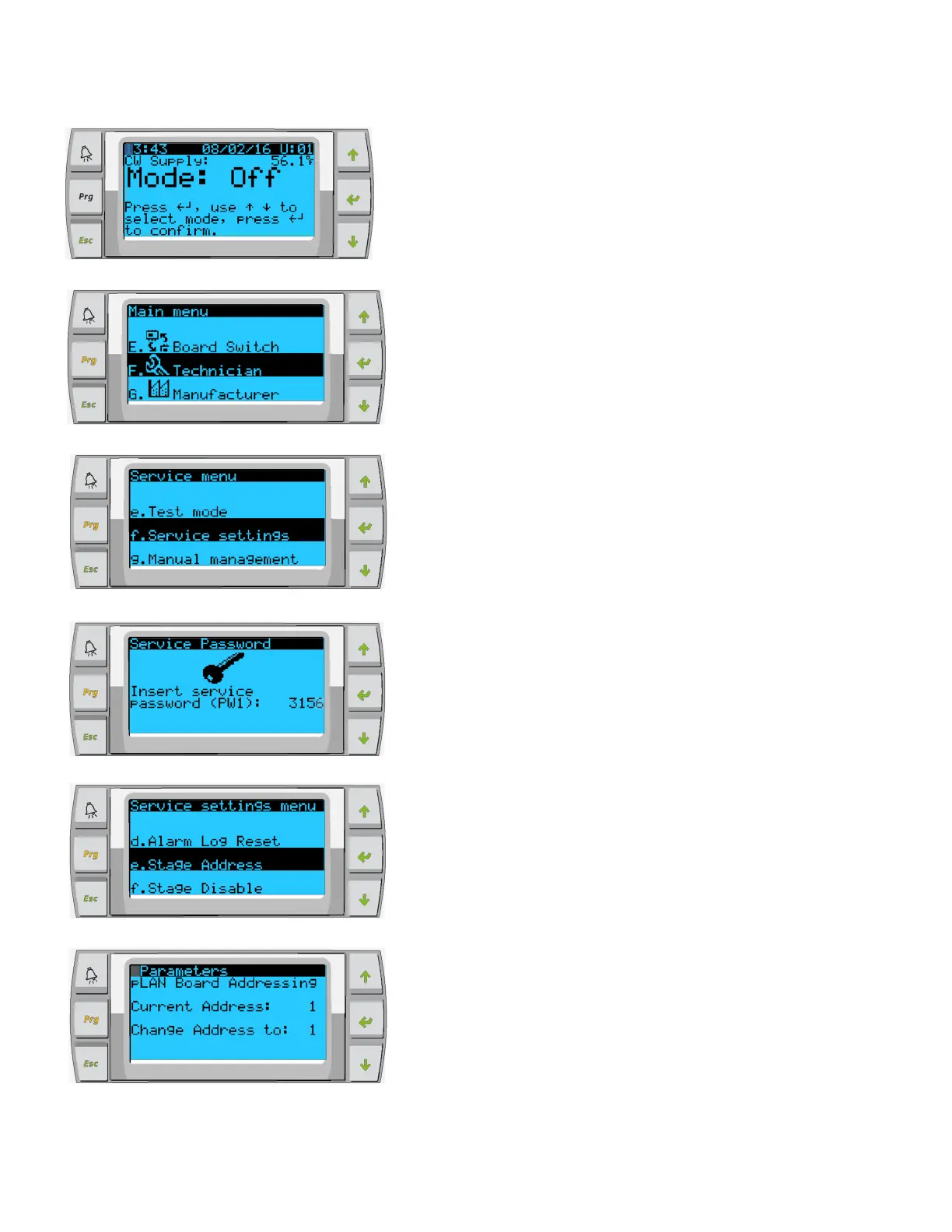

stage2.GointoprogramonstandardPLDPROcontrol
GotoTechnician 
Scrolldown
Enter
TechnicianPassword3156
Gotostageaddress
Hitenter,changeaddressto2forchiller2.3forchiller3etc….
Exitscreenbacktomainmenuandyouwillseeconfirmationofchange
inthetoprighthandcornerofthemainscreen.“U:02”or“U:03”
Completethenext
stepofnetworkingbeforemovingontothenext
chillerstage.
Pleasenotewhenconfiguringthestages,theymustnotbeabletocommunicatewitheachother.
Eitherdisconnectthenetworkconnectionorpowerdownallotherstagesbeforetryingtonetwork.
Figure13
Figure14
Figure15
Figure16
Figure17
Figure18
