OPERATION
L025317 Issue 5 July 2014 3-15
QUICKSTEP INTERFACE
Home Screen

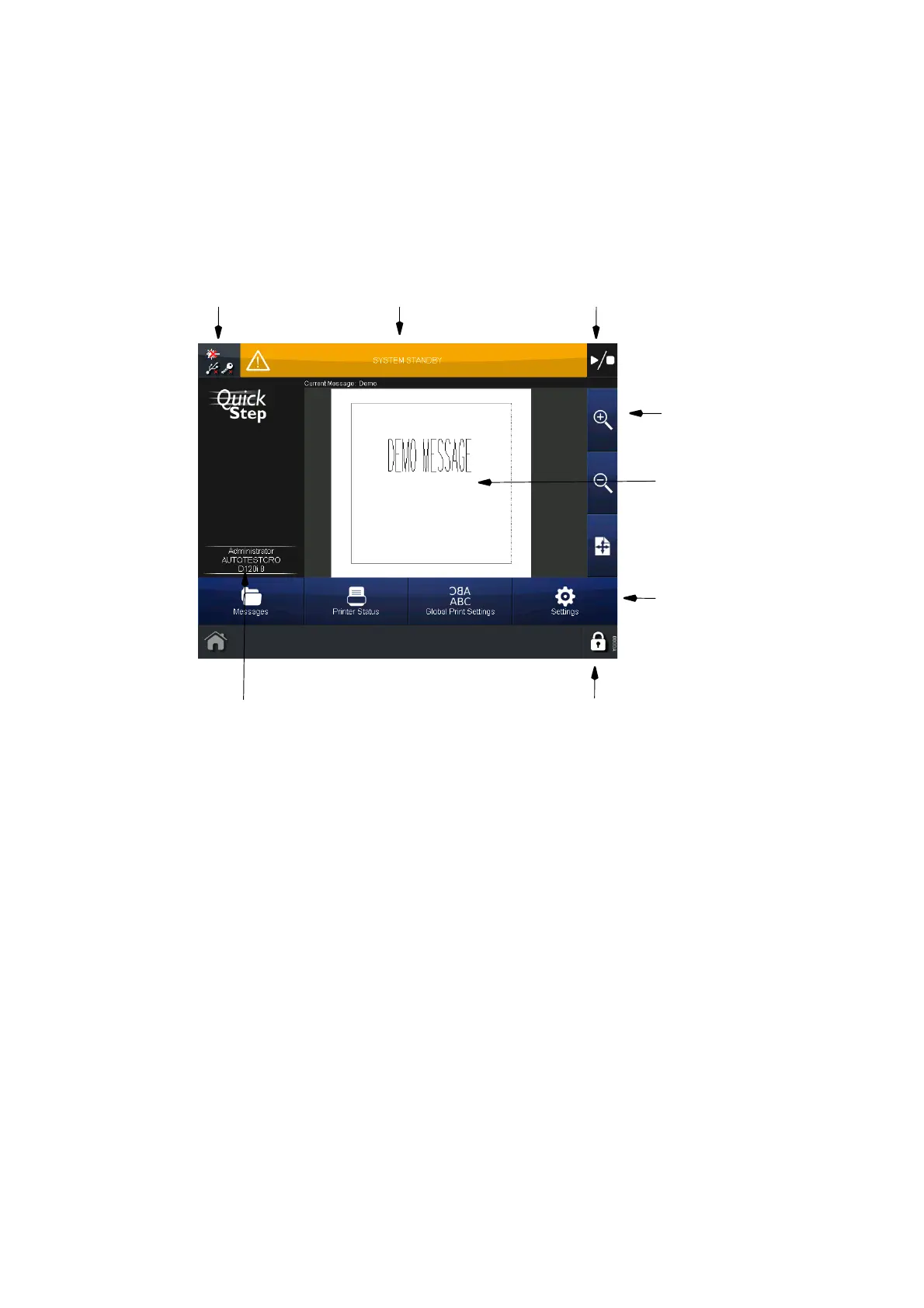

When starting the printer, the following Home screen is displayed.
Status Icons: Displays current status of printer, e.g:
• Laser active: (Laser is busy - laser emission!)
• USB device connected: (USB device
connected to controller or TouchPanel)
• Dongle connected: (Pharma or Service
dongle connected)
Status Bar: Displays printer and alert status. If more than one
alert is present, the highest priority alert is
displayed.
Start/Stop Button: • Enables marking: If the laser unit is switched
off, it must be switched on before marking
can take place.
•Stops marking
• Triggers a print
• Restarts the Printer
Status Icons Status Bar Start/Stop Button
Lock
Main Menu
Selection
Buttons
Live
Message
Preview
Zoom
Toolbar
Printer Name
To Next Page
