INSTALLATION INSTRUCTIONS
2-32 L025317 Issue 5 July 2014

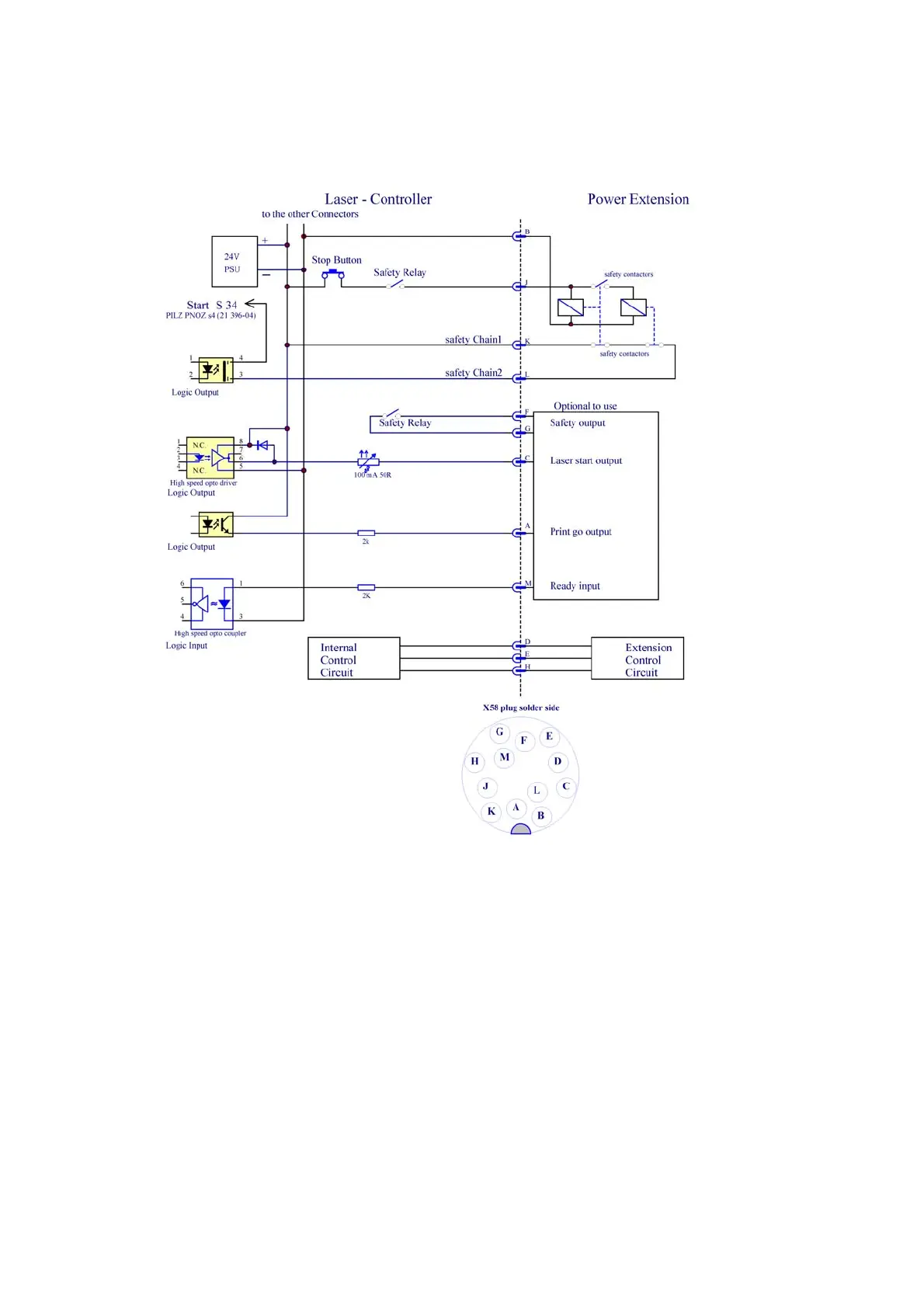

X58 Connector Schematic - Power Extension
Only needed to connect the power extension box for 60 Watt systems.
Do not connect anything else to this connector.
