INSTALLATION INSTRUCTIONS
L025317 Issue 5 July 2014 2-11
TOUCHPANEL INSTALLATION
The installation must be carried out by trained technicians only.
Two supply voltages are provided for the TouchPanel which can be
operated individually or in parallel:
Power supply of the TouchPanel
• Mains supply via the main socket. Only use the Domino power
cord: A free accessible power socket must be installed nearby the
TouchPanel. Extension cables must not be used to connect the
TouchPanel to mains power. The built-in power supply may be
switched via the AC On/Off switch of the TouchPanel.
• Power supply via the X59 ethernet connector of the BCP7
controller: Only use the Domino X59 cables with 5m (Domino part
number L015211) or 10m (Domino part number L015212) length to
connect the TouchPanel to the BCP7 controller. Only these cables
ensure the 24V DC power supply of the TouchPanel. The power supply
of the TouchPanel fused with 2.5A inside the BCP7 controller. This
power supply may only switched off with the BCP7 controller On/
Off switch.

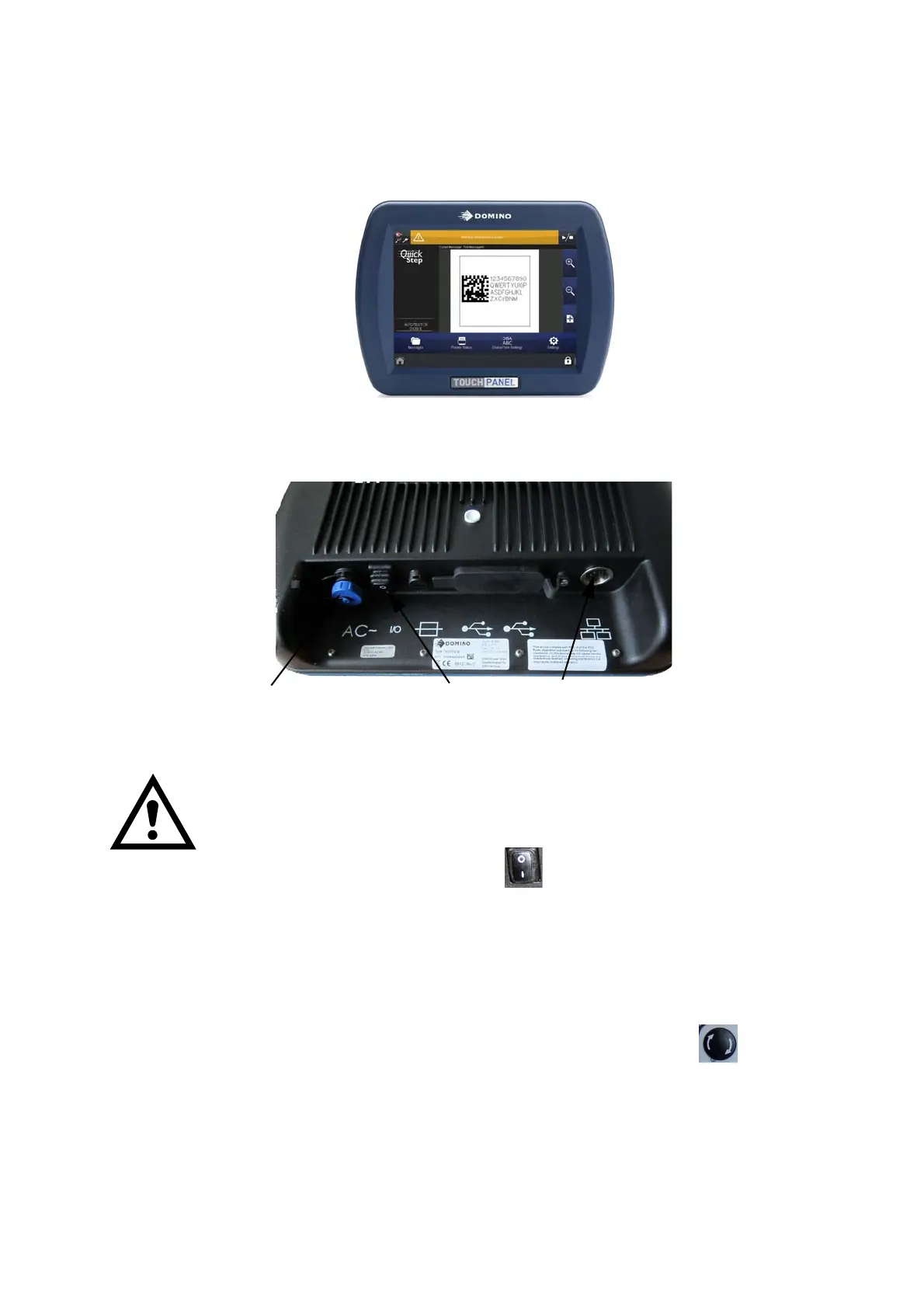

AC Mains supply via mains
socket
Power supply via BCP7
controller (X59)
AC On/Off
Switch
